Mini-B / WW

MINI-B: CL3005 - MINI-B WW: CL3020

Compact yet packed with exceptional quality, Mini-B is the ultimate versatile LED moving head, designed to meet the demands of today’s professionals. Offering outstanding color rendering, precise control, and user-friendly convenience, it’s the perfect choice for those seeking high performance in a streamlined, small package. Ideal for creating dynamic lighting environments, Mini-B redefines what a small fixture can achieve.

Dive into what sets Mini-B apart:

  • Compact design: At just 7 kg and 34 cm tall, Mini-B is exceptionally lightweight and easy to transport—perfectly suited for touring and rental applications.
  • Powerful Output: Despite its small size, Mini-B delivers impressive brightness.
  • Zoom Versatility: With a range from 4° to 55°, Mini-B offers exceptional flexibility. At its narrowest, the beam is sharp and focused—perfect for impactful aerial effects. Fully open, it transforms into an outstanding wash light, capable of replacing larger, heavier equipment across stages, TV studios, multi-purpose venues, and clubs.
  • Dynamic Effects: With separate control of the central LED and outer ring, Mini-B creates stunning lighting effects, plus 50 pre-installed effects and color macros for easy setups.
  • Wide Color Temperature Range: From cool to warm tones, Mini-B adapts to any setting with versatile color temperature options.

Mini-B WW
Building on the success of the Mini-B Series, we have introduced models equipped with Warm White RGB LEDs. Retaining the power of the original models, these lights offer a natural color temperature of 3200K. Mini-B WW is bright, lightweight, and compact—perfect for when warm tones and the ability to flatter performers’ complexions are essential considerations for lighting designers.

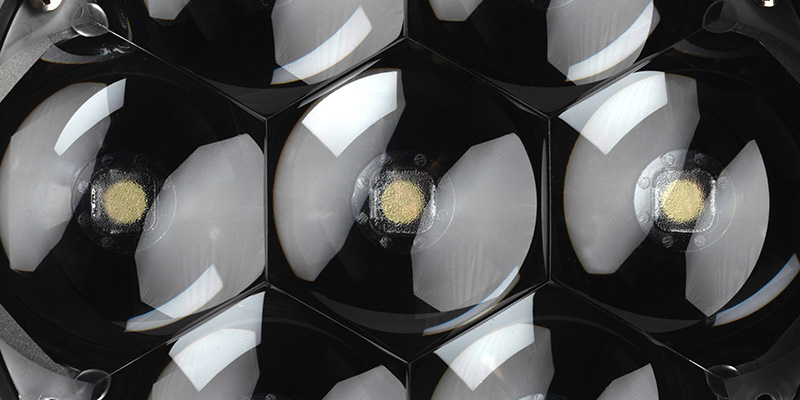

  • Light Source
    7 x 40W RGBW Osram Ostar LEDs
  • Light Output
    3,420 lm
  • Zoom range
    4°- 55°
  • Effects
    RGB+W (or RGB+WW) color mixing, 16bit; Linear CTO 2500K to 8000K (RGBW version), 16bit; Linear CTB, 6500K to 2500K (RGBWW version); Preset macro colors; Motorized Zoom; High resolution electronic Dimmer - 24 bit, 5 curves; High speed electronic Strobe
Data Sheet DMX Channels Photometrics PDF

Highlights

Specs

Save as pdf and print



LIGHT SOURCE:

  • Source type: RGBW LED / RGBW+WW LED
  • Power: 40 W x 7 (Osram)
  • LED life expectancy: 20.000Hrs  L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

    • Zoom range: 4 - 55°
    • Lm output: 3420 Lm (integrating sphere)
    • Front lens: Ø 140 mm
    • Optical syt.: High efficiency

NOISE LEVEL

    • Controlled by:Able to control linearly the speed of the fans
    • Fixed presets
      • Silent mode: 34.4 dBA
      • Auto mode: 42.9 dBA
      • Theatre mode: 41.2 dBA
      • Constant mode: 44.3 dBA

CONTROL and CONNECTIONS

  • Personalities: 4 modes with 17 / 21 / 21 / 29 control channels
  • Protocols:  DMX , Art Net, sACN, RDM
  • Connectors:
    • Locking 5 pin XLR IN/ OUT
    • RJ45 IN
  • Power con: PowerCon True1 IN/OUT
  • Web server: Built in
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
  • Preset macro colors
  • Mini B:
    • RGB+W color mixing (16bit)
    • Linear CTO 2500K to 8000K (16bit)
  • Mini B WW:
    • RGB+WW color mixing (16bit)
    • Linear CTO 6500K to 2000K (16bit)
  • Movement:
    • Tilt: 260° - 16bit (3.5 sec Max speed)
    • Pan: 540° - 16bit (5.4 sec Max speed)
    • Automatic repositioning
    • Fast/Normal/Boost speed selectable by Function channel
  • Beam:
    • Motorized Zoom
  • Dimmer/Shutter:
    • High resolution electronic Dimmer - 24 bit, 5 curves
    • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminium and steel structure with plastic covers
  • Two side handles for transportation (Optional)
  • IP 20 protection rate
  • Working in any position
  • Hanging system: with fast lock Omega clamps (1/4 turn on the base)
  • Optional safety chain

ELECTRICAL

  • Operating voltage: 100-120 / 200-240V, 50/60 Hz
  • In/Out MAX: In/Out Max 6 (2) fixtures @ 200-240Vac (@ 100-120Vac)
  • Power Supply: Electronic auto range with active PFC
  • MAX power consumption: 375 W

THERMAL SPECIFICATION

  • Max ambient temperature: 40°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 956,5 BTU/hr ±10% / 1008 kJ/hr ±10 %

SAFETY SPECS

  • Minimum distance of illuminated objects: 0.2 meters (8”)
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

COMPLIANCE

  • CE Marking (in conformity to the following:
    • 2014/35/EU Low Voltage Directive (LVD)
    • 2014/30/EU Electromagnetic Compatibility (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N. 1101
    • S.I. 20 16 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N.166:2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (8 positions)

WEIGHT - SIZE

  • Weight: 6.5 Kg ( 14.5 lbs)
  • Base dim.s: 186 x 220 mm 7.32 x 8.66 In
  • Height with vert head (h): 346 mm 13.62 In
  • Distance between two fixtures: 340mm

ACCESSORIES

  • Omega bracket: 1 x 381014-801 (Included)
  • ETL Power: CAB02B-802 (Included)
    *Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Two side handless: CA3001000100 (Optional)
  • Egg crate: CA3002000100 (Optional)
  • Frost filter 2°: CA3008000100 (Optional)
  • Frost filter 5°: CA3009000100 (Optional)
  • Frost filter 2° + Egg:CA3012000100 (Optional)
  • Frost filter 5° + Egg: CA3013000100 (Optional)
  • Foam shell: F21316-001 (Optional)
  • Igloo fast fit bracket: CA3004000100 (Optional)
  • Flight case (8 pos):  CF1003F (Optional)
  • Safety Chain: 105015-802 (Optional)
  • Clamp: C21070 (Optional)
  • PowerCon True 1 con.: CON00O (Optional)
