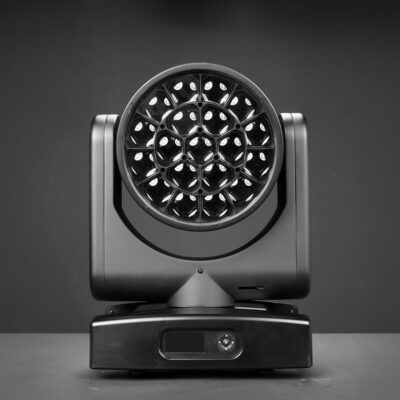

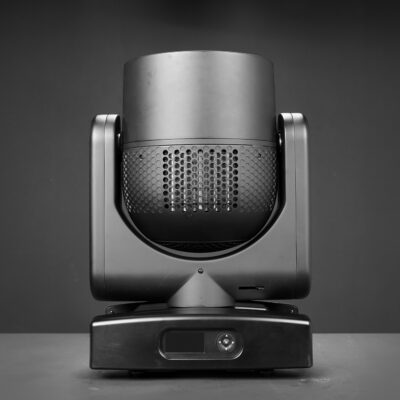

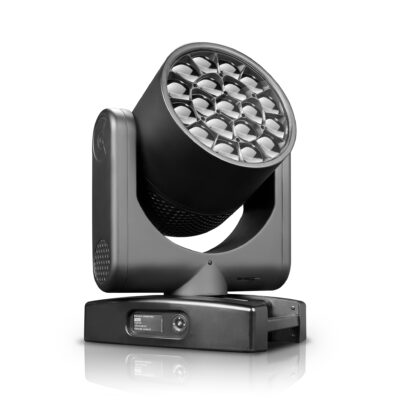

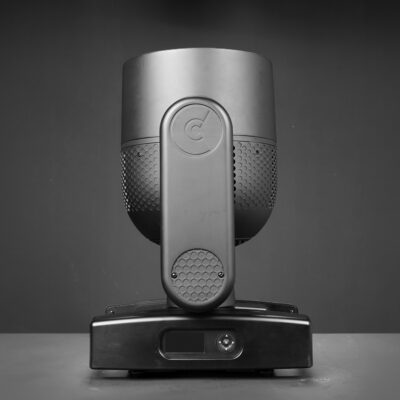

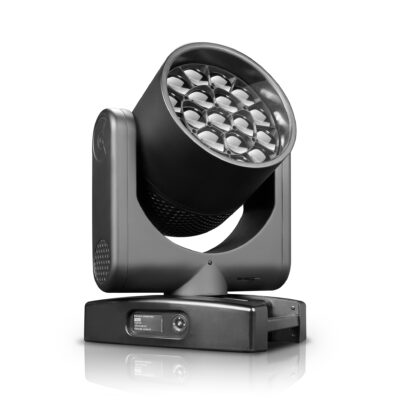

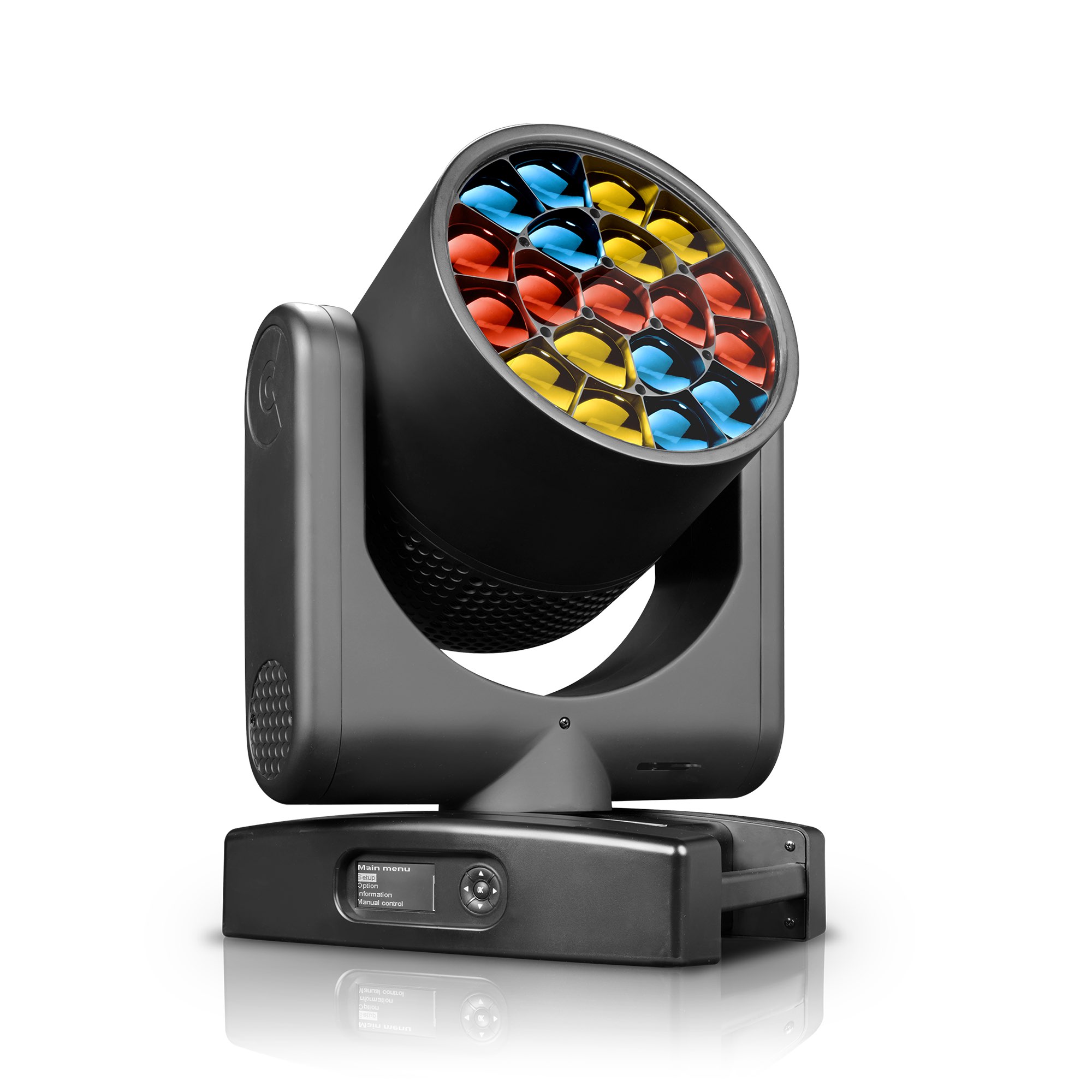

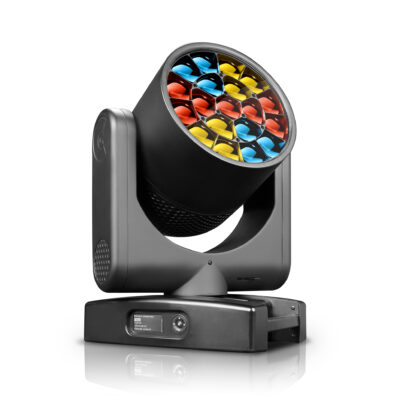

HY B-Eye K15 Aqua

CL3030
NEW

The HY B-Eye K15 Aqua represents a significant upgrade from the latest HY B-Eye K15, setting innovation and light output standards while maintaining an unmatched IP66 rating.
An original optical unit is at its heart that improves uniformity and light output efficiency. The patented pending Advanced Layer Management system is a new innovation that seamlessly blends three different layers at once. HY B-Eye K15 Aqua is reliable and effective, whatever the weather!

The rotating front lens and individual LED control unleash a mesmerizing world of kaleidoscopic projections and captivating eye-candy effects. This innovation simplifies complex macro effects, making it an all-in-one lighting solution: a powerful LED wash, a flawless beam, and a jaw-dropping visual effects projector – all in a single fixture.
The 40W RGBW LED engine delivers unbeatable performance, ensuring a brilliant display, even on the largest venues. HY B-EYE K15 Aqua is more powerful, efficient, intelligent, versatile, and weatherproof than ever before!

Discover the HY B-EYE K15 Aqua, where power, precision, and performance come together to deliver unforgettable lighting experiences in any weather!

What makes the HY B-Eye K15 Aqua stand out?

– Dynamic Precision: featuring a bi-directional rotating front lens and individual LED control, the HY B-Eye K15 Aqua simplifies complex effects creation with an advanced engine for mesmerizing visual displays.
– Enhanced Effects: our Advanced Multi-Layer Management system enables the simultaneous creation of multiple effects, elevating show dynamics through seamless management of three different layers (background, built-in macros, external video contents).
– Optimized Efficiency: custom-made lenses optimize light collection, seamlessly blending LEDs to deliver efficient and sustainable illumination, setting new standards in brightness and energy efficiency.
– IP66 Certified: Claypaky’s Shield Family, including the HY B-Eye K15 Aqua, offers weather- and dust-resistant lighting solutions with IP66 certification, ensuring durability and minimal maintenance.

  • Light Source
    19 x RGBW LED driven at 40W
  • Zoom range
    4°-60°
  • Effects
    Three operating modes: wash, beam, FX (Kaleido effects); Bi-directional Rotating Front Lens; Digital Wash-Beam Framing effect; Beam edge softening control (in Wash mode); Pixel Patterning Macros with enhanced control; White CT Emulation 2500-8000K; Automatic adjustment of RGBW mixing to simulate light sources with color temperatures; Tungsten Lamp Emulation; Control of each single LED (Pixel Mapping)
Data Sheet

Highlights

  • HY B-Eye K15 Aqua bi-directional rotating front lens

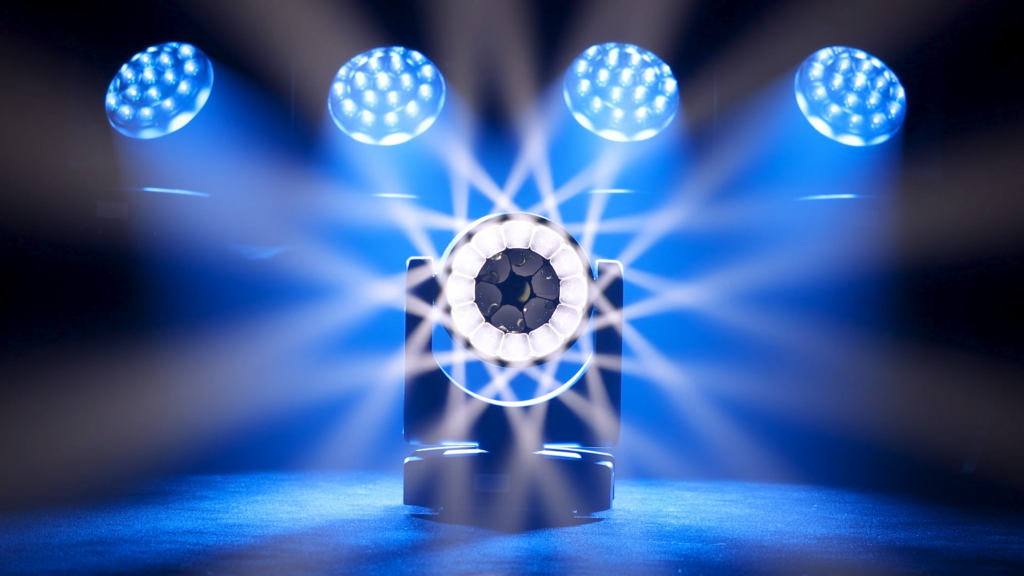

    Rotating front lens and macros
    Rotating front lens and macros

    Equipped with a bi-directional rotating front lens and individual LED control (pixel mapping), the HY B-Eye K15 Aqua empowers you to create mesmerizing kaleidoscopic projections, enchanting eye candy visual displays, and stunning moonflower effects that will captivate your audience. But that’s just the tip of the iceberg.  The advanced effects engine simplifies programming complexities, making routine use of macro effects as easy as snapping your fingers. No more struggling with complicated setups; the HY B-Eye K15 Aqua makes it easy.

  • Advanced Layer Management

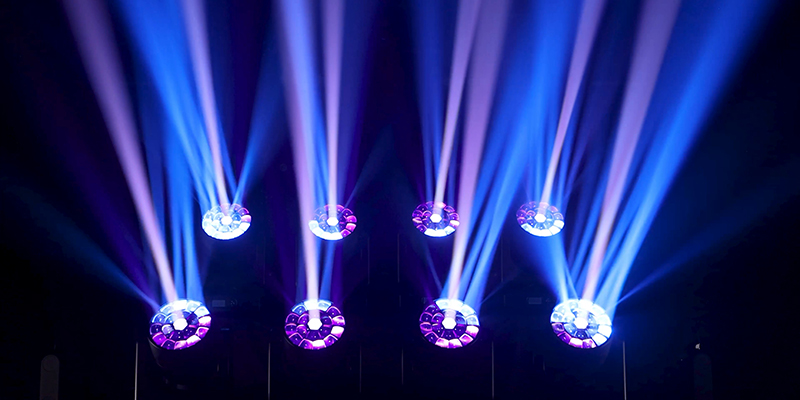

    Advanced Layer Management

    Our Advanced Layer Management system creates multiple effects simultaneously in a snap. It gives you a significant advantage over the HY B-Eye K15 Aqua, making your shows more dynamic and engaging than ever before. Now you can mix and match three layers of effects at once. Imagine having the freedom to choose a background color, fire up an internal built-in sequence, and throw in some external video content, all while seamlessly switching between these layers with the flick of a switch.

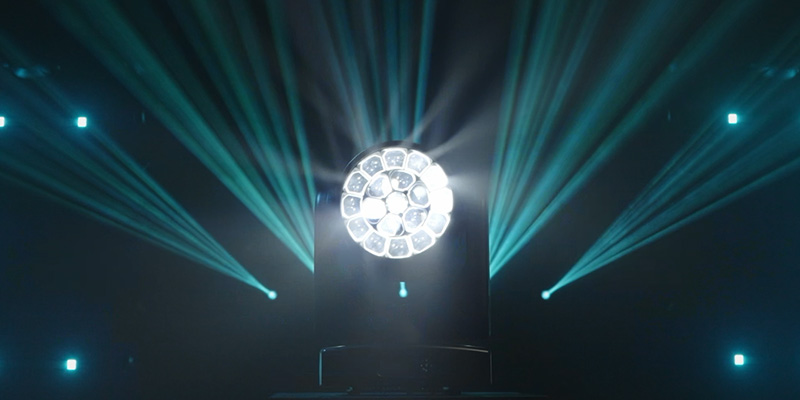

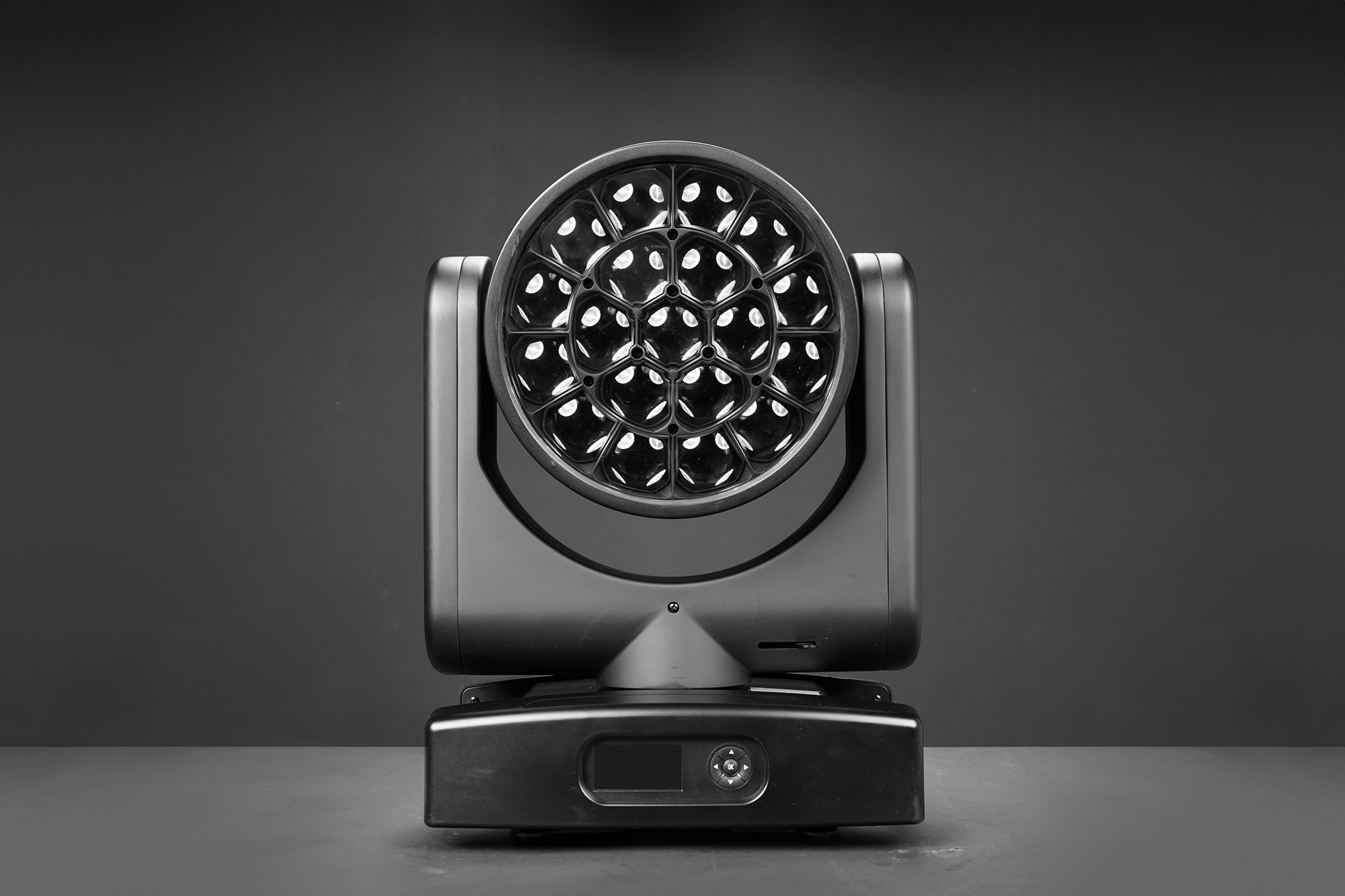

  • Patented 19-lens system
    Patented 19-lens system
    Patented 19-lens system

    Our innovative custom-made lenses are like expert light collectors, guiding every ray and transforming it into a harmonious dance of brightness. The result? The light from each LED blends seamlessly, creating a breathtaking canvas. HY B-Eye K15 Aqua delivers brilliantly efficient lighting performance: the lumen/watt ratio outshines any other model in its power class. It’s not just about being brighter, it’s about being smarter and more sustainable, resulting in unparalleled efficiency and cost-effectiveness.

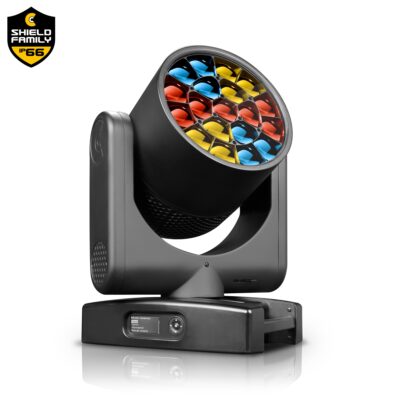

  • Shield Family (IP66)
    Shield Family (IP66)

    Claypaky’s Shield Family, including the HY B-Eye K15 Aqua fixture, sets a new standard for weather-resistant lighting solutions. These IP66-certified fixtures are designed to be high-performance, ultra-durable, and long-lasting. Moreover, they are dustproof, ensuring reduced maintenance costs and hassle-free operation.


    Discover more about Shield Family (IP66)

Specs

LIGHT SOURCE TYPE

  • Souce type:  RGBW LEDs
  • Power: 40W (x19)
  • Colour Temperature: 2400 to 9500 K
  • CRI: Up to 70
  • LED life expectancy: 50000 hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

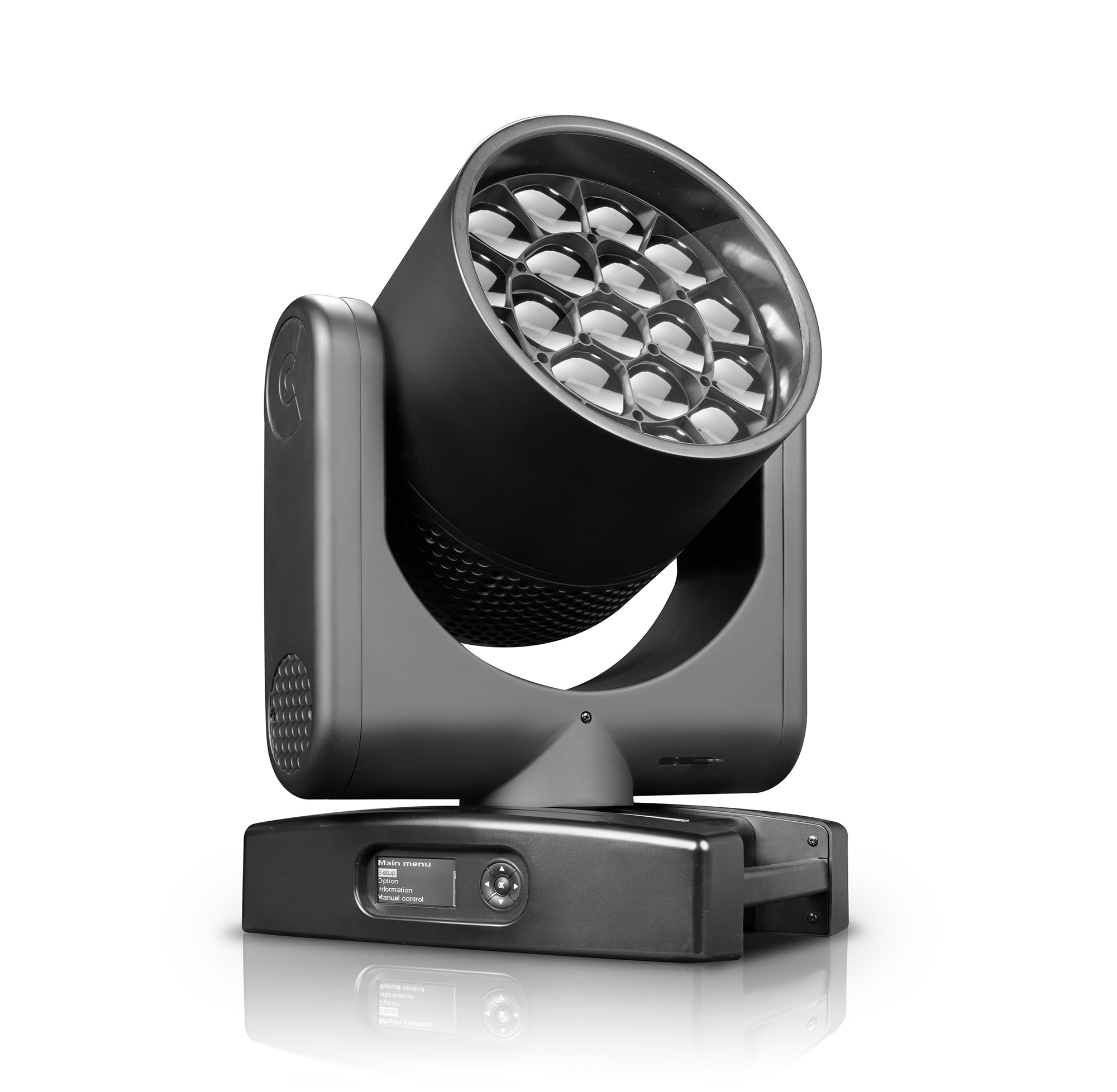

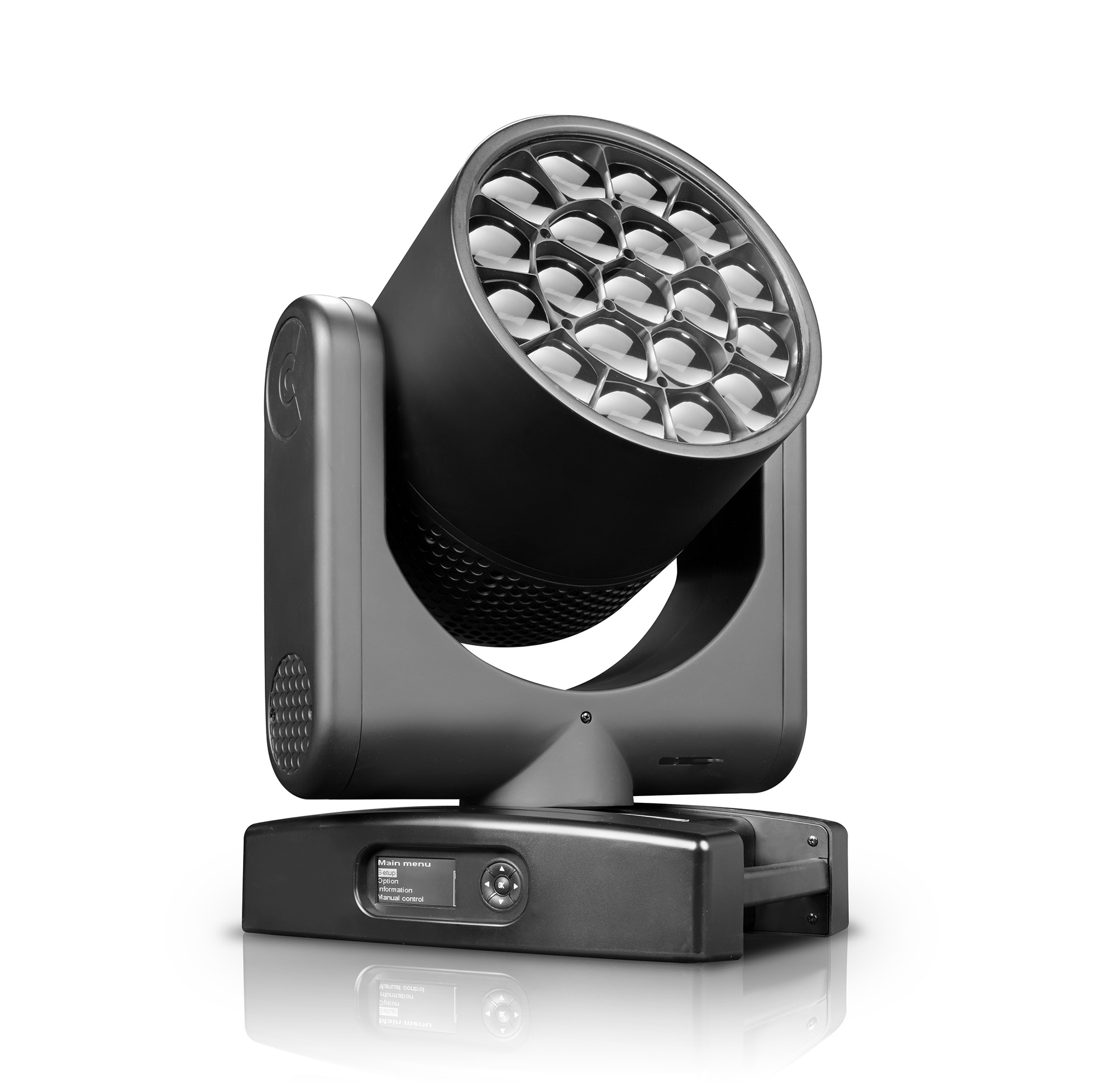

  • Zoom range: 4° - 60°
  • Lumen Output: 13500 Lm (Integrating sphere)
  • Optical system: Patented 19 lens system

NOISE LEVEL

  • Controled by: Able to control linearly the speed of the fans
  • Fixed preset:
    • 34,4 dBA – Silent Mode*
    • 37,8 dBA – Standard Mode*
    • 42,4 dBA – Full mode*
      *Background Noise 22,1 dBA

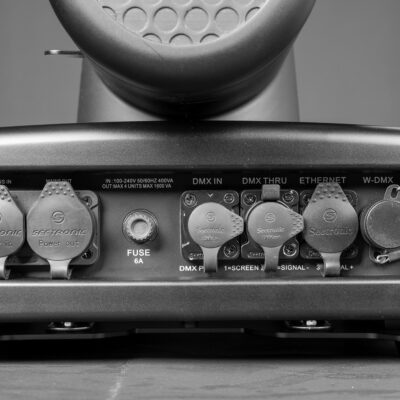

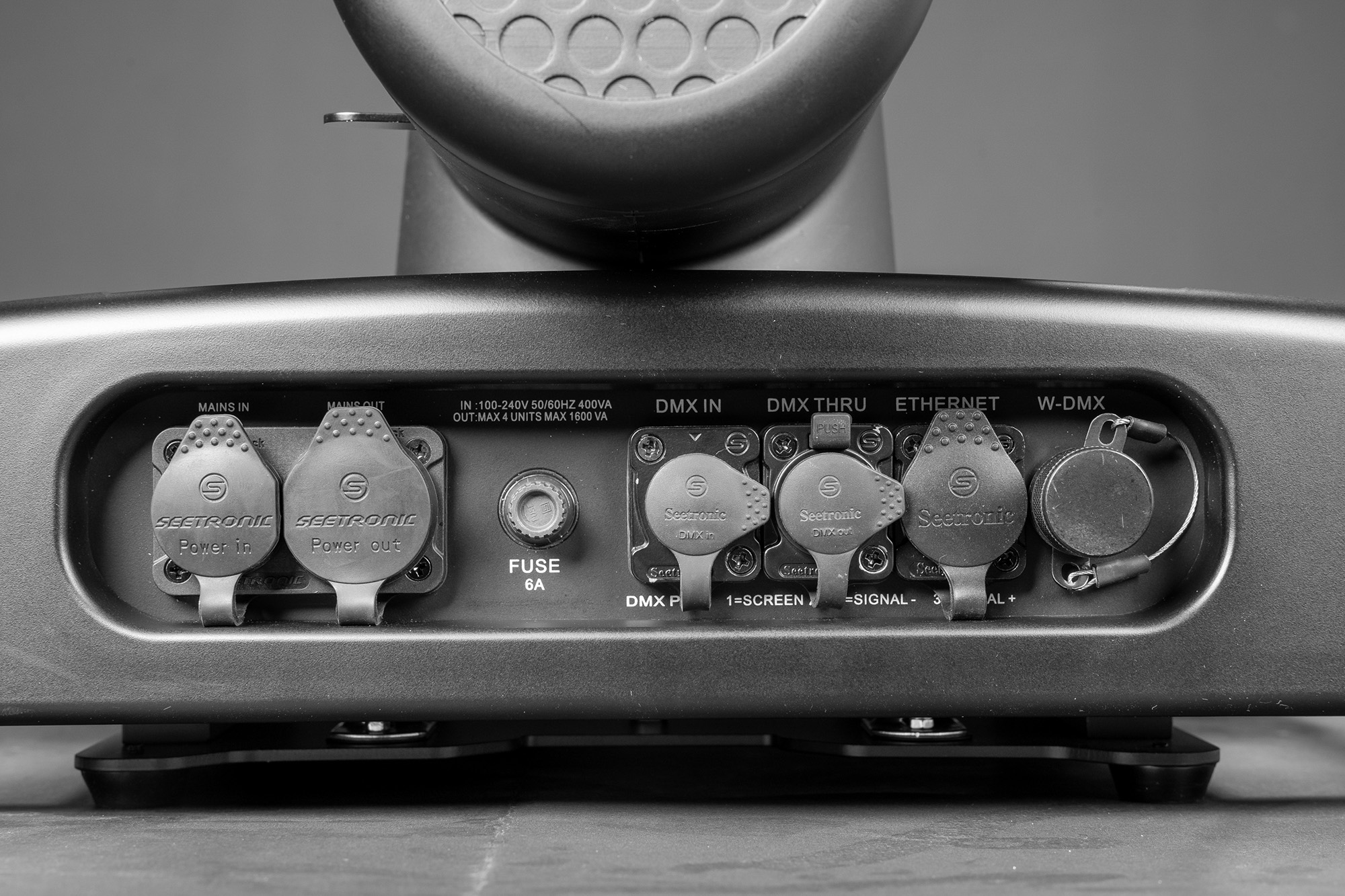

CONTROL and CONNECTIONS

  • Personalities: 5 mode with 22 / 36 / 33 / 57 / 76 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • Connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Web Server: Built In
  • CloudIO:
    • Fully compatible
    • On-field calibration for color consistency

DYNAMIC EFFECTS

  • Colours:
    • Built-in macros with enhanced pixel control
    • Preset colors
    • Dedicated channel for color temperature setting
    • White CT Emulation 2500-8000K
    • RGBW auto-tuning to lamp CT Emulation
    • Tungsten Lamp Emulation
  • Rotating Effects:
    • Bi-directional rotating front lenses
  • Movement:
    • Tilt: 220° (16 bit)
    • Pan: 540° (16 bit)
    • Automatic repositioning
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Beam edge softening control (in wash mode)
  • Dimmer/Shutter:
    • 0-100% linear electronic dimmer
    • Adjustable speed stop/strobe effect with instantaneous blackout
    • Slow strobe: 1 flash/sec
    • Fast strobe: 25 flash/sec
    • High resolution electronic dimmer – 24 bit, 4 curves

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display graphic LCD backlit B/W display
  • Firmware upload from another fixture
  • Firmware upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminium and steel structure with plastic covers
  • Two side handles for transportation
  • IP66 protection rate
  • Working in any position
  • Hanging system: with fast-lock Omega clamps (1/4) turn on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-120 / 200-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 680W

THERMAL SPECIFICATION

  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • Max temp. of the ext. surface: 90°C (194°F)
  • Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0,2 m (8’’)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Thermally protected power supply (overheating and cooling failure)
  • 5x20 delayed fuse
  • Forced ventilation with axial fans

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/53/EU - Radio Equipment Directive (RED)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2017 N.1206
    • S.I. 2012 N.3032
    • S.I. 2021 N.745
  • cMETus Listed:
    • UL1573
    • CSA C22.2 N. 166:15

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • Weight:
    • 27,8 Kg
    • 61,3 lbs
  • Base dimensions:
    • 407 x 390 mm
    • 16,02 x 15,35 in
  • Height with vertical  head (h):
    • 573 mm
    • 22,56 in
  • Distance between two fixtures:
    • 600 mm

ACCESSORIES

  • Omega bracket: 2x183102/805 (Included)
  • ETL Power: CAB02B-802 (Included)*
    *It may vary depending on various factors, as type of use and environment
  • Flight case 4 positions: CF1026 (Optional)
  • Flight case (4 positions) + Foam shell: CF1026F (Optional)
  • Safety Chain: 105041-001 (Optional)
  • Clamp: C21070 (Optional)
