Claypaky Midi-B

Midi-B is a new LED-based moving head luminaire with 19 40-watt RGBW LEDs, the same ones used in the popular HY B-EYE and Mini-B fixtures. Its zoom range of 4° to 50° allows for many applications.

Fixtures in this class are in high demand because they meet many needs, from the smallest venue to the largest show. With so many choices available, this fixture lends to highly competitive prices and the lowest common denominator performance. This makes it difficult for customers to decide which fixture to choose without sacrificing performance.

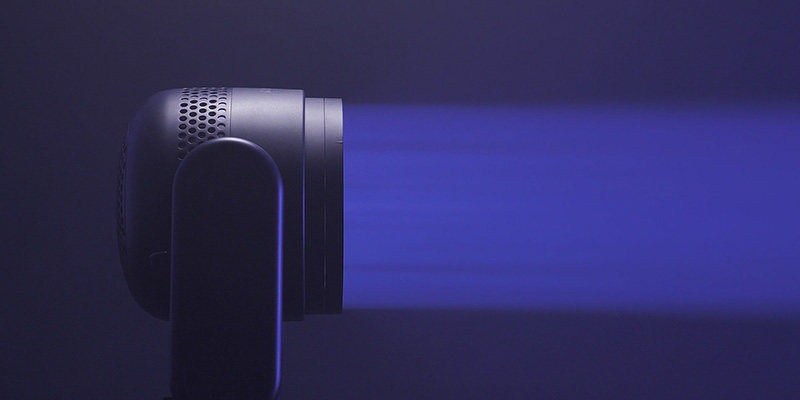

Claypaky’s Midi-B addresses these needs thanks to its amazing cost/performance ratio. The narrowest angle produces an ultra-dense beam, ideal for aerial effects. Midi-B turns into an exceptional, uniform wash light at its widest zoom, and can replace much heavier and bulkier fixtures. The 19 LEDs are arranged in three independently controllable rings, which can be used for bright backlighting effects. Colour macros, 2500K to 8000K colour temperature control range, 16-bit dimmer with four curves, 25 flashes per second electronic strobe, and Ethernet access complete the MIDI-B’s features.

Midi-B WW

Following the success of the Mini-B Series, Claypaky has added lights equipped with Warm White RGB LEDs to its range. The power is the same as the original models but they have a natural colour temperature of 3200K. Midi-B WWs are bright, lightweight and compact, just right when warm colour tones and the possibility of enhancing the complexion of the artists on stage are crucial factors in the lighting designer’s choice of units.

  • Light Source
    19 RGBW (or RGBWW) Osram Ostar LEDs
  • Light Output
    11,400 lm
  • Zoom range
    4°- 50°
  • Effects
    Linear RGBW or RGBWW; Linear CTO 2500K to 8000K (RGBW version); Linear CTB 6500K to 2500K (RGBWW version); Preset Macro colors; Three independently controlled LED rings; Motorized Zoom; High resolution electronic Dimmer - 24 bit (5 curves); High speed electronic Strobe
Data Sheet (Midi-B) Data Sheet (Midi-B WW) DMX Channels Photometrics PDF

Highlights

Specs

Save as pdf and print

LIGHT SOURCE TYPE

  • 19x Osram 40W RGB + W LEDs.
  • 19x Osram 40W RGB + WW LEDs.
  • 1900 lumen each LED
  • LED life expectancy: 50000Hrs ( 20000Hrs L70* )
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 50°
  • 11401 Lumen Output (Integrating Sphere)
  • High efficiency optical system

NOISE LEVEL

  • Theatre Fan mode: 34.5 dBA
  • SLN Fan Mode: 35.2dBA
  • Auto Fan Mode: 39.2 dBA
  • Constant Fan mode: 41.2 dBA

CONTROL and CONNECTIONS

  • Personalities: 4 modes with 17/21/25/37 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors:
    • Linear RGB + W
    • Linear CTO (2500K to 8000K color temperature control)
      • Linear RGB + WW
      • Linear CTO (6500K to 2500K color temperature control)
    • Preset Macro colors

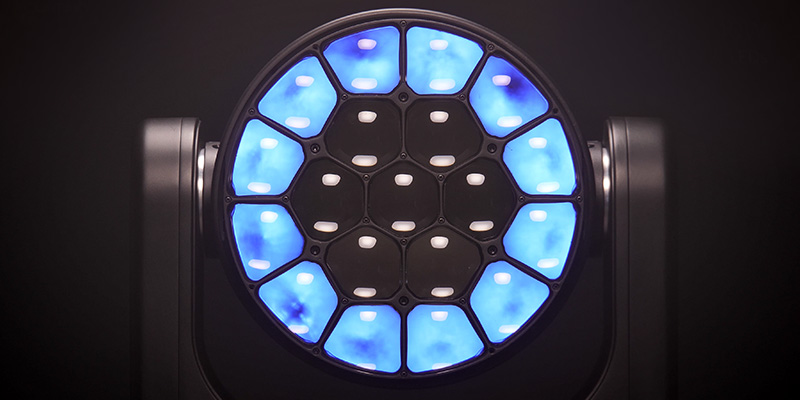

    • Three independently controlled LED rings
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Automatic repositioning
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom
    • Automatic repositioning when DMX is disconnected
  • Dimmer/Shutter:

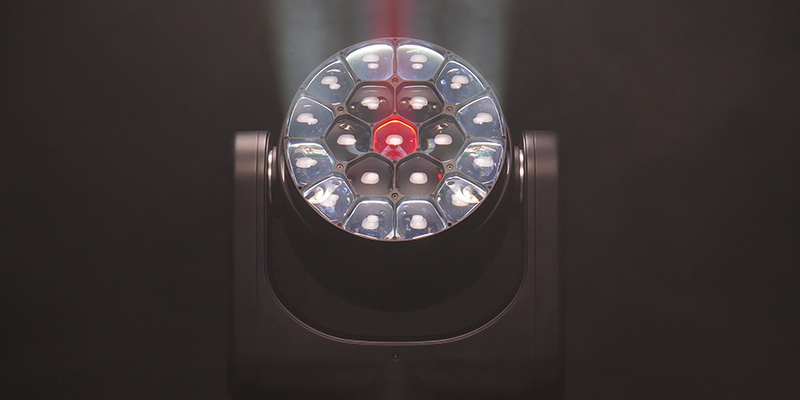

    • High resolution electronic Dimmer - 24 bit (5 curves)
    • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 830VA

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%

SAFETY SPECS

  • In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • 17 Kg (37.5 lbs)
  • 252x390mm (base dimension) – 471mm with vertical head (h)
  • Distance between two fixtures 500mm

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB03D/802 (included)
  • Foam shell: F21321/001 (optional)
  • Flight case: F21321 (optional)
  • Safety Chain: 105041/003 (optional)
