Mini-B Sparky Aqua

CL3034

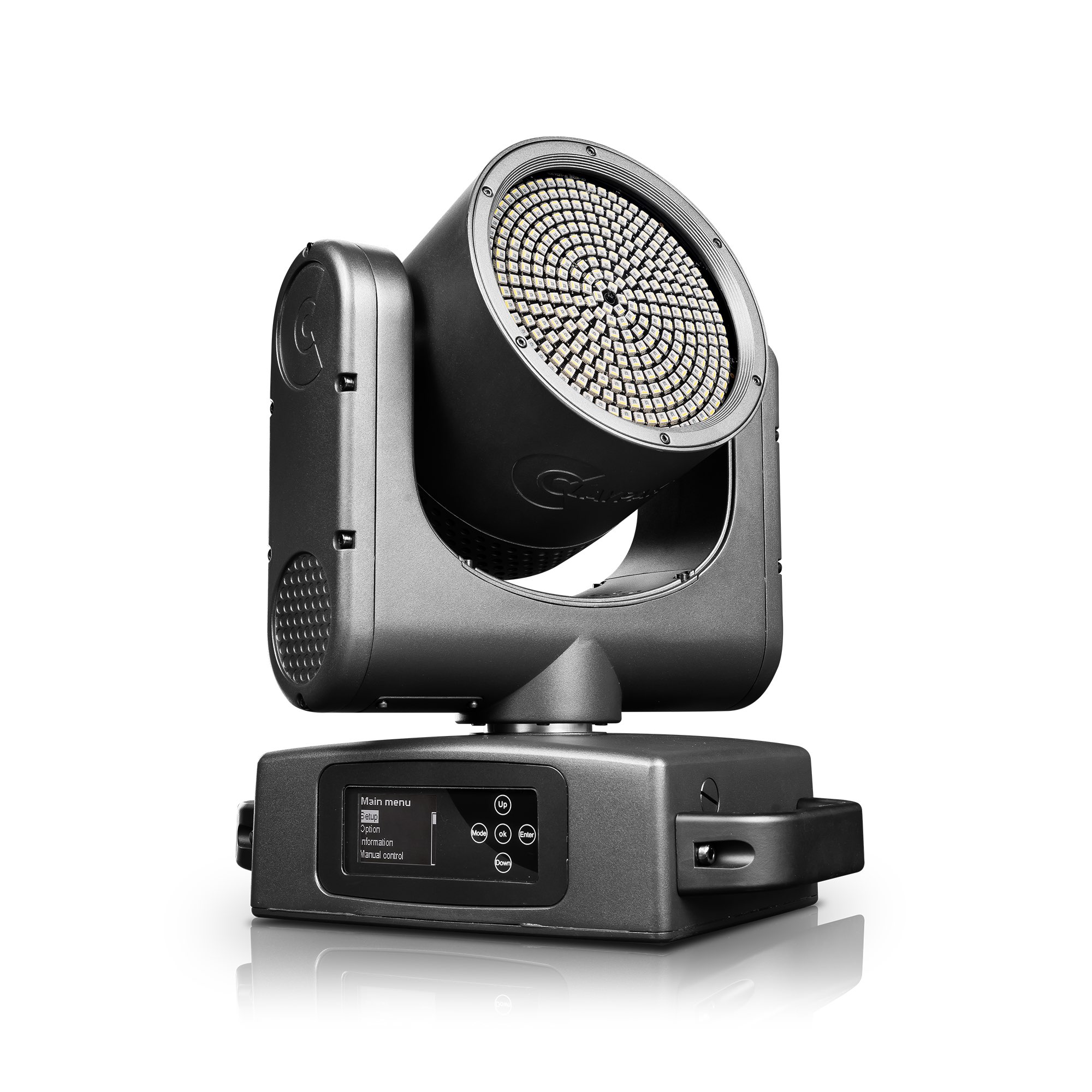

Claypaky Mni-B Sparky Aqua
NEW

Step into the future with Mini-B Sparky Aqua—a true game-changer in the world of compact, lightweight mini moving-heads! This IP66-rated fixture is causing a stir, and for good reason: prepare to be hypnotized by the powerful strobe effects of Mini-B Sparky Aqua!

Let’s dive into the details:

  • Robust Design, Powerful Performance: Mini-B Sparky Aqua doesn’t play games when it comes to durability and brightness. Its high-output RGBW SMD LEDs, arranged in 10 individually controllable concentric circles, create intense colors that spread evenly across a wide 120° floodlight. Whether indoors or outdoors, this tiny fixture delivers awesome visual effects, from kaleidoscopic displays to strong strobe effects.
  • Swift Moves, Precise Beams: Thanks to lightning-fast pan and tilt movements, Mini-B Sparky Aqua hits its mark every time. Perfect for live performances, events, and dynamic light shows, it’s like having a nimble dancer on stage. From gentle fades to dramatic sweeps, it’s got the moves.
  • Sleek Design, Seamless Integration: Mini-B Sparky Aqua’s compact profile fits anywhere—trusses, overhead rigs, or discreet spots. Modern design meets top-tier performance.
  • Creativity Released: Our Advanced Layer Management system lets you merge effects effortlessly. Background color, built-in macros, and external video content—mesmerizing possibilities at your fingertips.
  • Rock the Stage, Illuminate the backdrops: Mini-B Sparky Aqua can deliver vibrant lighting effects that leave audiences spellbound.

Whether you’re planning a large-scale event, a theatrical production, or a themed installation, this fixture promises to deliver unparalleled performance and reliability. Get ready to be hypnotized!

  • Light Source
    330 x 1W RGBW SMD LEDs arranged into 10 concentric circles
  • Light Output
    up to 14,000 lm
  • Zoom range
    120° beam aperture
  • Effects
    Pixel mapping; 16-bit electronic dimmer; Electronic strobe @ 30 f/sec
Data Sheet DMX Channels Photometrics PDF

Highlights

Specs

LIGHT SOURCE

  • Source type: LED RGBW (330 pcs x 1W)
  • LED life expectancy: 50,000Hrs (L70*)
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Aperture: 120°
  • Lumen Output: 14000 Lm (integrating sphere)
  • Front Lens: Ø 188 mm
  • Optical system: High efficiency

NOISE LEVEL

  • Fixed presets:
    • Auto: 51,2 dB
    • Silent: 41 dB
    • Theatre: 49,1 dB
    • Constant: 51.2 dB

CONTROL and CONNECTIONS

  • Personalities:
    • Main engine: 5 modes with 14 / 18 / 28 / 36 / 30 control channels
    • Pixels engine : 2 modes with 30 / 40 control channels
  • Protocols: DMX, Art-Net, RDM, sACN, webserver
  • Connectors:
    • Locking 5 pin XLR IN/OUT
    • RJ45 IN/OUT
  • Power connectors: PowerCon True 1 IN/OUT
  • CloudIO: Fully compatible
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors:
    • RGBW color mixing - 16 bit
    • Linear CTO 2700K to 8000K
    • Advanced layers management (color, internal shape, pixel mapping)
    • individual control of 10 LEDs areas (ring);
    • Pre-programmed shape selection of static and dynamic patterns
  • Movement:
    • Tilt: 220° (16 bit)
    • Pan: 540° (16 bit)
  • Strobe:
    • Electronic strobe from 1 to 25 f/sec
  • Dimmer/Shutter:
    • High speed electronic dimmer - 16 Bit, 5 curves
    • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

  • Long life self charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • Two side handles for transportation
  • IP66 protection rate
  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100–240 V, 50/60 Hz
  • Power supply: Electronic auto range with active PFC
  • Max Power consumption: 340W

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 1161 BTU/hr ±10% / 1224 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 0,2 m (8’’)
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with fans and heatsink
    • Fuse T10 - 250V + battery use T10A 250V

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/ 35 EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573: 2003
    • CSA C22.2 N. 166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (6 positions)

WEIGHT - SIZE

  • Weight: 12,194 Kg (26,88 lbs)
  • Base dimensions: 332 x 200 mm (13.07 x 7,87 In)
  • Height with vertical head:
    • 373 mm (14,68 In)
    • 420 mm (16.53 In) with top hat
  • Distance between two fixture: 400 mm

ACCESSORIES

  • Omega bracket: 1 x 433060-801 (Included)
  • Top-hat: CA3066000102 (Included)
  • ETL Power: CAB02B-802 (Optional)*
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
  • Flight case ( 6 pos): CF1036F (Optional)
  • Foam shell: F21339-001 (Optional)
  • Safety Chain: 105015-802 (Optional)
  • Clamp: C21070 (Optional)
  • PowerCon True1 connector: CON00O ( Optional)
