Mini-B Spot

CL3025

Mini-B Spot is a compact, lightweight moving head spotlight with a surprising punch. Despite its small size, it delivers powerful and versatile performance, making it a must-have for any lighting designer. Designed to complement the Mini-B washlight range, it is perfect for various applications, from small venues to large-scale productions, and delivers high-quality performance in any setting.

Key Features and Benefits:

  • Powerful LED Engine: The 70W white LED engine delivers an impressive 3500 lumens while consuming just 150W of power, ensuring energy efficiency without sacrificing brightness.
  • Compact and Lightweight: Weighing just 8.5 kg (18.7 lbs), Mini-B Spot is easy to transport and install.
  • Versatile Zoom and Focus: With a motorized zoom from 13° to 43°and autofocus you can reach a wide range of effects, from narrow beams to wider washes.
  • High-Quality Optics: Mini-B Spot delivers sharp, well-defined beams with minimal spill light.
  • Rich Color Options: The color wheel features eight options, including dark red, brilliant blue, and golden amber. A 3200K CTO filter provides a warm white light, offering a wide palette for creative lighting designs.
  • Dynamic Effects: With seven interchangeable HD gobos and a four-faced rotating prism, Mini-B Spot creates stunning visual effects that can enhance any performance or event.
  • Advanced Control Options: It supports multiple control protocols (DMX512, Art-Net, sACN) and features a 24-bit electronic dimmer with four curve options for precise lighting adjustments.
  • High-Speed Movement: Mini-B Spot’s pan and tilt movements are fast, enabling dynamic lighting changes that can keep up with the action on stage.

Mini-B Spot is a versatile tool that enhances creativity while being easy on a budget. Combining powerful output, compact size, and innovative features, it is essential to any lighting designer’s toolkit. Whether you’re a rental company or looking to upgrade installations on cruise ships, this spotlight packs a punch in a small package. Mini-B Spot: A Pocket-Sized Powerhouse!

  • Light Source
    70W white LED engine
  • Light Output
    3,500 lm
  • Zoom range
    13° to 43°
  • Effects
    Very high-speed pan and tilt movements; 5° linear soft-edge frost; 24-bit digital dimmer; 7-color wheel: dark red, brilliant blue, dark green, golden amber, dark orange, navy blue, CTO + open; 3200K CTO filter on the color wheel; 7-gobo wheel featuring HD, interchangeable gobos; Four-facet rotating prism; Electronic strobe @ 25 f/sec; 4 Operating modes.
Data Sheet DMX Channels Photometrics PDF

Highlights

  • Mini-B Spot highlight powerful LED engine
    Powerful 70W White LED Engine
    Powerful 70W White LED Engine

    The 70W white LED engine of Mini-B Spot produces an impressive 3500 lumens with only 150W of power consumption, combining exceptional brightness with remarkable energy efficiency.

  • Mini-B Spot highlight wide zoom range
    Wide Zoom Range and Autofocus
    Wide Zoom Range and Autofocus

    Mini-B Spot features an autofocus zoom from 13° to 43°, allowing narrow beams and wider coverage. Its 5° soft-edge frost filter creates a smooth, diffused effect, perfect for transitioning from focused light to a wash-out look.

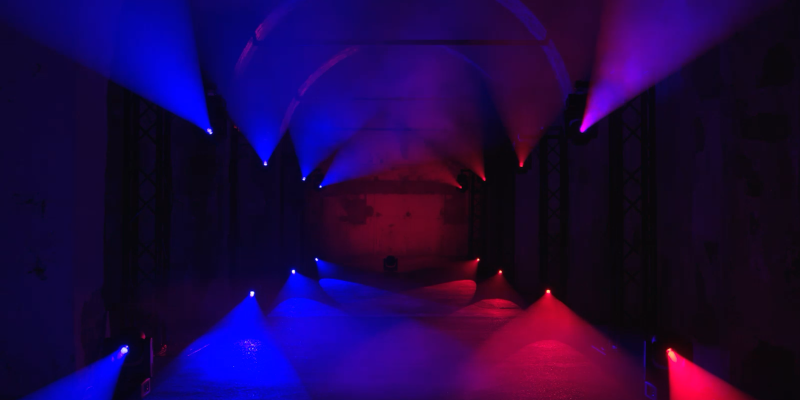

  • Mini-B Spot highlight high quality optics and color options
    High-Quality Optics and Rich Color Options
    High-Quality Optics and Rich Color Options

    Claypaky’s proprietary optical unit boosts intensity and light output, making the Mini-B Spot a perfect choice for any setup. Its color wheel includes seven colors—dark red, brilliant blue, dark green, golden amber, dark orange, and navy blue—plus an open option. A 3200K CTO filter creates a warm white light, adding natural warmth for any lighting need.

  • Mini-B Spot highlight dynamic effects with gobos
    Dynamic Effects
    Dynamic Effects

    Mini-B Spot’s gobo wheel is equipped with seven high-definition, fully interchangeable gobos, offering intricate designs that can be tailored to fit any scene. Additionally, the fixture includes a rotating four-faced prism that amplifies the effects, splitting and refracting the light into dynamic, multi-dimensional patterns.

  • Compact & Lightweight
    Compact & Lightweight

    With its compact and lightweight design, the Mini-B Spot achieves exceptionally fast pan and tilt movements, making it ideal for creating dynamic, high-energy lighting effects. Its agility and compact size make it an excellent choice for installations with limited rigging space, allowing designers to maximize creativity even in smaller venues.

Specs

Save as pdf and print

LIGHT SOURCE TYPE

  • 70W Custom White LED Engine
  • CRI: 70+
  • Colour Temperature: 7000K
  • Lamp life expectancy: 20000 hrs
  • *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 13° to 43°
  • 3450 Lumen Output (Integrating Sphere)
  • Front lens diameter: 60mm
  • High efficiency optical system

NOISE LEVEL

  • Theatre fan mode: 29.0 dBA
  • Silent fan mode: 31.0 dBA
  • Auto fan mode: 35.8 dBA
  • Constant fan mode: 49.9 dBA

CONTROL and CONNECTIONS

  • Personalities: Single mode with 19 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Colours:
    • Fixed color wheel with 7 dichroic colors
  • Gobos:
    • 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
    • Ext diam. 15.9 mm
    • Image diam. 12.5 mm
    • Thickness 1.1 mm
  • Frost:
    • Linear soft edge Frost 5°
  • Rotating Effects:
    • 4 Facets prism with rotation in both direction at variable speed
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Automatic repositioning
    • Fast/Normal speed selectable by Function channel
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    • High resolution electronic Dimmer - 24 bit, 4 curves
    • High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 16(8) fixtures @ 200-240Vac (@ 100-120Vac); Max 2200W; Max 10A
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 140VA

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 478 BTU/hr ±10% / 504 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0.5 meters (1’ 8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T2.5A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (8 positions)

WEIGHT - SIZE

  • 8.5 Kg (18.7 lbs)
  • 220x186mm (base dimension) – 401mm with vertical head (h)
  • Distance between two fixtures 400mm

ACCESSORIES

  • Omega clamp: 1x 381014-801 (included)
  • ETL Power cord 1.5mt. (bare end with IP65 PowerConTrue1 connector): CAB02B-802 (included)
  • Foam shell: F21335/001 (optional)
  • Flight-case for 8 Mini-B Spot: CF1019 without foam shell (optional)
  • Flight-case for 8 Mini-B Spot: CF1019F with 8 foam shell (optional)
  • Safety Chain: 105015-802 (optional)
  • Clamp: C21070 (optional)
  • Handles: CA3001000100 (optional)
