Mini-B ParLED Aqua

Mini-B ParLED Aqua: CL2018 - Mini-B Parled Aqua WW: CL2017

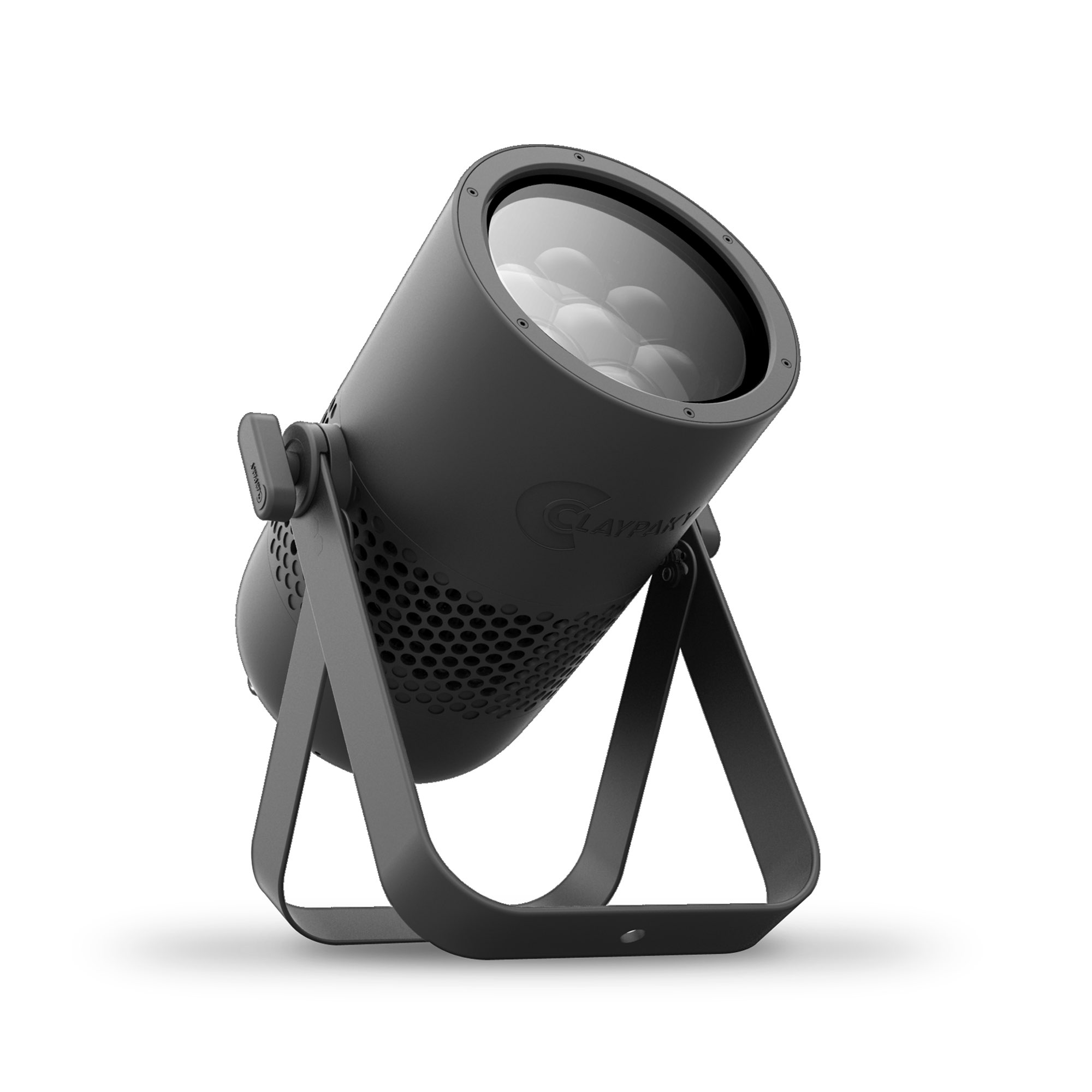

Claypaky Mini-B Par LED Aqua

Mini-B ParLED Aqua is a compact LED washlight designed to handle outdoor events easily and in style, redefining versatility and performance in a small package. Weighing in at just 7 kg and measuring only 34 cm, this fixture combines advanced optical technology with powerful RGBW LEDs, and a durable weatherproof design, making it an ideal choice for various applications.

Get to know Mini-B ParLED Aqua:

  • Ultra-Compact Design: Its small size makes it easy to transport and install, allowing creative placements in any venue.
  • IP66 Protection Rating: Built to withstand the elements, it is fully weatherproof, making it ideal for all outdoor setups without sacrificing performance or durability.
  • Powerful RGBWW LED Source: Equipped with 40-watt RGBW LEDs, it delivers rich colors and bright whites, ensuring vivid lighting in any condition.
  • Wide Zoom Range: The motorized zoom ranges from 4° to 53°. It can create tight beams for aerial effects or wide washes, effortlessly adapting to various lighting needs.
  • Independent LED Control: The central LED can be controlled separately from the outer ring, enabling stunning graphic effects that enhance visual storytelling.
  • Flexible Color Temperature: Offers color temperature control from 2500K to 8000K, providing options for warm or cool lighting depending on the mood or setting.

Mini-B ParLED Aqua WW
Following the success of the Mini-B Series, Claypaky has added models equipped with Warm White RGB LEDs to its range. The power is the same as the original models but they have a natural colour temperature of 3200K. Mini-B Parled Aqua WW is bright, lightweight, and compact, and is just right when warm color tones and the possibility of enhancing the complexion of the artists on stage are crucial factors in the lighting designer’s choice of units.

Mini-B ParLED Aqua stands out not just for its size but also for its ability to deliver professional-grade lighting effects in any environment. Whether it’s an open-air concert, an outdoor exhibition, or a rugged installation, it brings bright colors, sharp focus, and reliable performance to the stage, without compromising quality. It’s proof that great things do come also in small packages!

  • Light Source
    7 x RGBW or RGBWW Osram LEDs
  • Light Output
    3400 Lumen Output
  • Zoom range
    4°- 53°
  • Effects
    RGBW (or RGBWW) colour mixing 16bit; Linear CTO, 2500K to 8000K (RGBW version); Linear CTB 6500K to 2500K (RGBWW version); Preset macro colors; Motorized Zoom; High resolution electronic Dimmer - 24 bit; High speed electronic Strobe
Data Sheet DMX Channels Photometrics PDF

Highlights

Specs

Save as pdf and print

LIGHT SOURCE TYPE

  • 7x Osram 40W RGBW LEDs (Mini B PARLED Aqua)
  • 7x Osram 40W RGB+WW LEDs (Mini B PARLED Aqua WW)
  • LED life expectancy: 50000hrs (20000Hrs L70*)
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 53°
  • 3400 Lumen Output (Integrating Sphere)
  • Front lens diameter: 160mm
  • High efficiency optical system

NOISE LEVEL

  • SLN mode: 36.4 dBA
  • Auto mode: 44.5 dBA
  • Constant mode: 47.9 dBA

CONTROL and CONNECTIONS

  • Personalities: Four different operating modes, 13/17/17 or 25 DMX control channel
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors:
    • colour mixing 16bit
    • RGBW (Mini B PARLED Aqua)
    • RGBWW (Mini B PARLED Aqua WW)
    • Linear CTO, 2700K to 8000K (Mini B PARLED Aqua)
    • Linear CTB 6500K to 2500 (Mini B PARLED Aqua WW)
    • Preset macro color
  • Beam:
    • Motorized Zoom
  • Dimmer/Shutter:
    • High resolution electronic Dimmer - 24 bit
    • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure
  • Two built in brackets designed to stand on the floor
  • IP66 protection rate
  • IK08 impact energy

WORKING POSITION

  • Working in any position
  • Hanging system: built in brackets
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 9(4) fixtures @ 200-240Vac (@ 100-120Vac)
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 300VA

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 957 BTU/hr ±10% / 1008 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0.2 meters (8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Flight case + Foam shell (8 positions)

WEIGHT - SIZE

  • 7.4 Kg (16.3 lbs)
  • 281mm x 345mm x 367mm
  • Distance between two fixtures 400mm

ACCESSORIES

  • Foam shell: F21320/001 (optional)
  • Flight case: CF1009 (optional)
  • Power cord: CAB0L1/802 (included)
  • Safety Chain: 105041/001 (optional)
