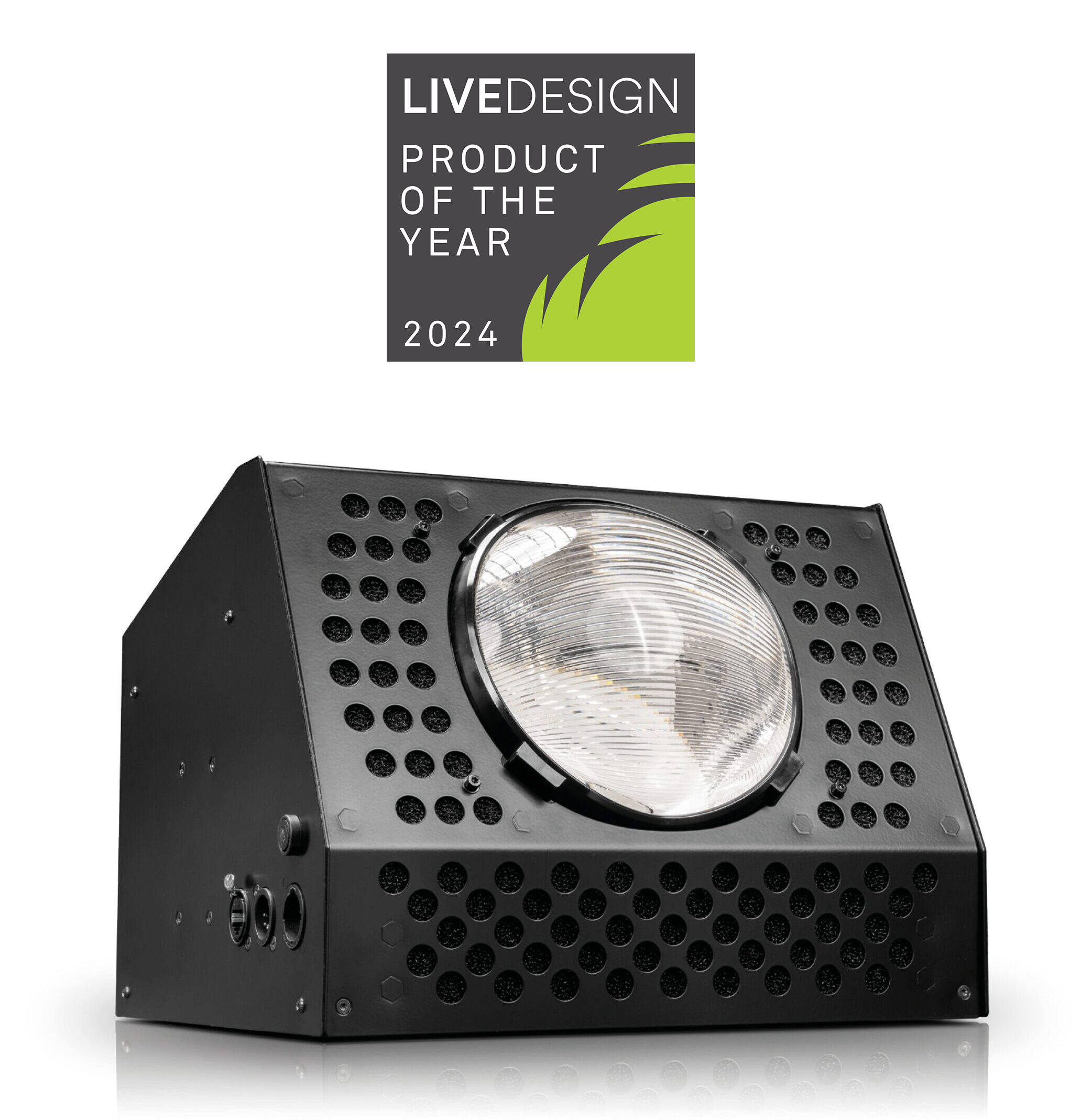

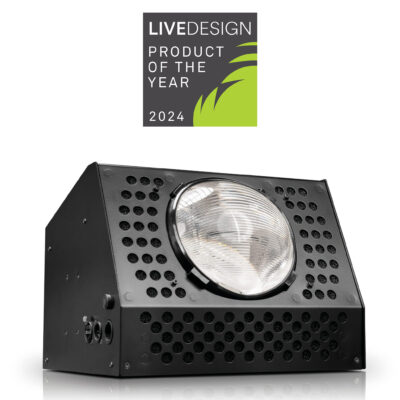

  • Claypaky ADB Orkis CYC

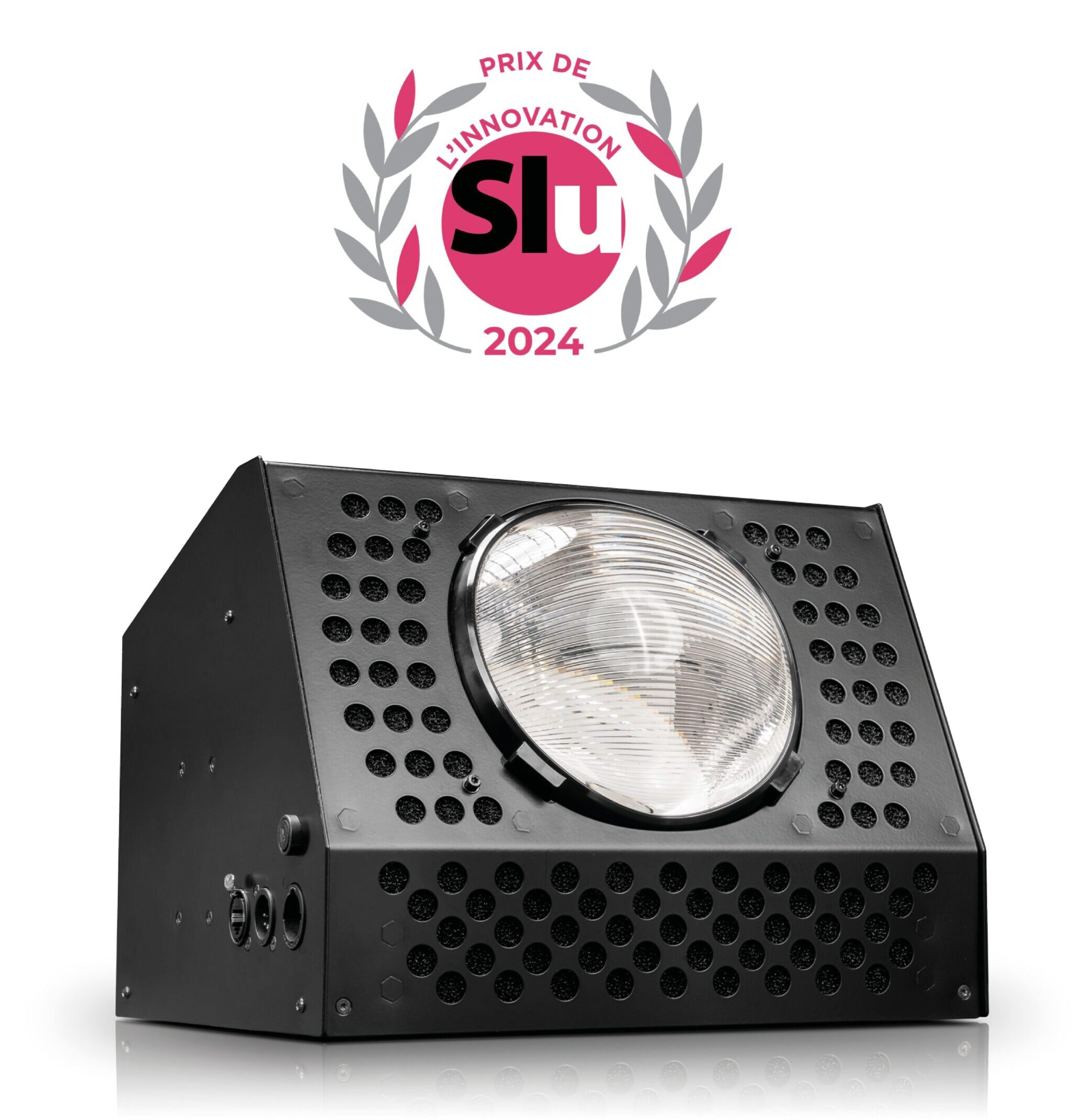

  • The ADB by Claypaky Orkis CYC wins the Prix de l'innovation SLU

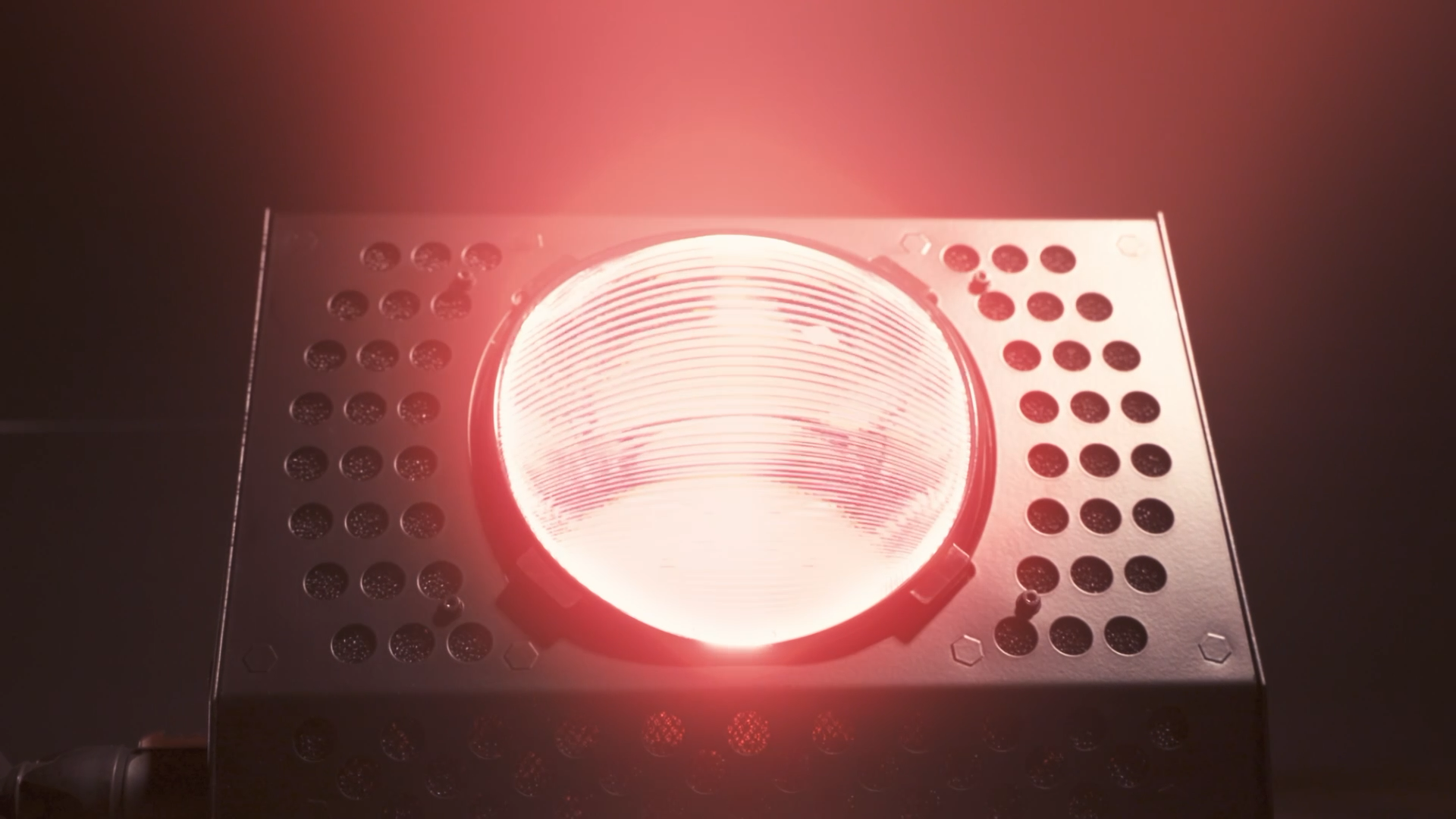

  • ADB by Claypaky Orkis CYC - Flow Technology

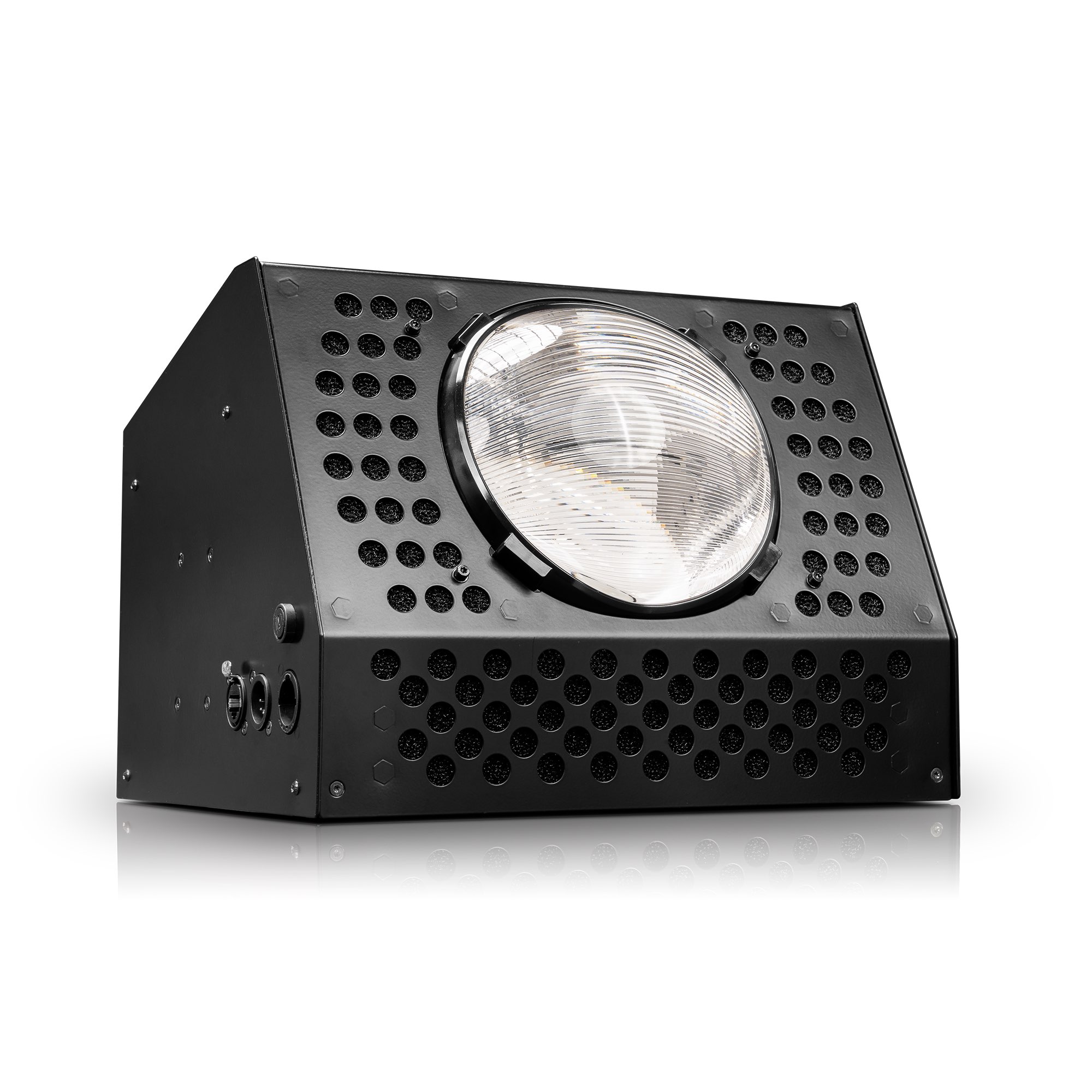

  • ADB by Claypaky Orkis CYC
  • ADB by Claypaky Orkis CYC
    • Go to photo 1
    • Go to photo 2
    • Go to photo 3
    • Go to photo 4
    • Go to photo 5
    • Go to photo 6
    NEW

    Cyclorama lights are the unsung heroes of the stage, bathing backdrops in seamless washes of light and transporting audiences into the heart of the story. But traditional cyclorama lights can be bulky, noisy, and power-hungry. Meet Orkis Cyc, the game-changing cyclorama light from ADB by Claypaky. This innovative wall-washer combines the best of both worlds: theatrical color perfection with FLOW cutting-edge Active Liquid Cooling Technology.

    Built on a multispectral 6-color HCR LED technology, Orkis Cyc offers a wide selection of colors and precise dimming capabilities. With Amber, Cyan, and Lime added to the standard RGB colors, it ensures accurate color reproduction and flexibility in lighting setups including Tunable White light from 2500K to 8000K.
    Orkis Cyc isn’t just about lighting up the stage – it’s about doing it silently and efficiently.
    It is compact and lightweight (<6kg) thus it is suitable for floor or truss mounting. The internally developed FLOW Technology, Orkis Cyc’s Active Liquid Cooling System, reduces noise levels up to 24.2 dB in standard mode, perfect for whisper-quiet operations without compromising performance in theatrical productions, concerts, and film studios. Orkis Cyc is the world’s first fixture in the entertainment lighting sector incorporating this technology.

    Here’s what makes Orkis Cyc special:

    • High Color Rendering: Thanks to its 6-color HCR LED technology, Orkis Cyc delivers a wide range of colors, from bold hues to pastel shades, with exceptional color accuracy (CRI 98).
    • Silent Operation: No more distracting fan noise! Orkis Cyc’s innovative FLOW Technology keeps it whisper-quiet, even in the most demanding settings.
    • Seamless Beam Blending: Create an even, smooth flood beam by blending multiple Orkis Cyc fixtures for complete coverage.
    • Flexible Color Control: Orkis Cyc offers precise dimming, color mixing, tunable white light, and in-field calibration for ultimate versatility.

    With Orkis Cyc, you’re not just choosing a light; you’re choosing a partner for creativity. Its versatility, silent operation, and compact design make it a perfect fit for any setting, helping you create unforgettable lighting effects that transport your audience to another world.

    • Light Source
      6-color RGBCAL HCR COB LED Engine
    • Zoom range
      asymmetric flood with proprietary optical design
    • Effects
      Color temperature: tunable white from 2500K to 8000K; CRI >97 throughout the entire CCT (up to 98); Wide color gamut and extended spectrum; 24-bit ultra-smooth dimming, with 4 dimming curves available
    Data Sheet DMX Channels Photometrics PDF

    Highlights

    Specs

    Save as pdf and print

    LIGHT SOURCE

    • Source type: HCR COB LED (Red + Green + Blue + Cyan + Amber + Lime)
    • Power: 210 W
    • Color temperature: 2500 to 8000K
    • CRI: Up to 98
    • LED life expectancy: 57.000Hrs  L70*
      *It may vary depending on various factors, as type of use and environment

    PHOTOMETRIC DATA

    • Lumen Output: 5700 Lumen Output (Integrating Sphere)
    • Front lens: Asymmetric
    • Optical system: High efficiency

    NOISE LEVEL

    • Controlled by:
      • Able to control linearly the speed of the fans
    • Fixed Preset:
      • Standard mode: 24,2 dBA
      • Silent mode: 22,7 dBA
      • Fanless mode: 21,2 dBA

    CONTROL and CONNECTIONS

    • Personalities: 4 modes with 14 / 14 / 27 / 27 control channels
    • Protocol: DMX 512, Art-Net, RDM, sACN
    • Connectors:
      • Locking 5 pin XLR IN/OUT
      • RJ45 IN/THRU
    • Power connector: PowerCon True1 IN/OUT
    • Web Server: Built-In
    • Cloud/IO:
      • Fully compatible
      • On-field calibration for color consistency

    DYNAMIC EFFECTS

    • Colors:
      • Wide color gamut and extended spectrum
      • High color rendering
      • Flexible color control
    • Beam:
      • Asymetric flood
      • Seamless beam blending
    • Dimmer/Shutter:
      • High resolution electronic Dimmer - 24 bit, 4 curves

    HARDWARE and SOFTWARE

    • Display Graphic LCD backlit b/w Display
    • Long life self-charging battery
    • Firmware upload from another fixture
    • Firmware Upgrade via Web Server
    • Diagnostic
    • DMX monitoring
    • Remote access through RDM

    HOUSING

    • Aluminum and steel structure with plastic covers
    • One handle for transportation
    • IP20 protection rate
    • Working in any position
    • Hanging system: with fast-lock Omega clamps (1/4) turn on the base
    • Optional safety chain

    COOLING SYSTEM

    • Active liquid cooling + forced ventilation

    ELECTRICAL

    • Operating Voltage: 100-240V, 50/60 Hz
    • Power Supply: Electronic auto range with active PFC
    • Max Power consumption: 250W

    THERMAL SPECIFICATION

    • Max ambient temperature: 40°C (104°F)
    • Min ambient temperature: -20°C (-4°F)
    • Max temperature of the external surface: 80°C (176°F)
    • Total heat dissipation: 844 BTU/hr ±10% / 890kJ/hr ±10%

    SAFETY SPECS

    • Minimum distance of illuminated objects: 0.2 meters (8”)
    • Minimum distance from flammable materials: 0.2 meters (8”)
    • Protection:
      • 5 x 20 GT delay cylindrical fuse
      • Thermally protected power supply (overheating and cooling failure)

    COMPLIANCE

    • CE Marking (in conformity to the following):
      • 2014/35/EU – Low Voltage directive (LV)
      • 2014/30/EU – Electromagnetic compatibility of equipment (EMC)
      • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
      • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
    • UKCA conforms to UK Regulations:
      • S.I. 2016 N.1101
      • S.I. 2016 N.1091
      • S.I. 2012 N.3032
      • S.I. 2021 N.745
    • cETLus LISTED:
      • UL1573: 2003
      • CSA 22.2 N.166: 2015

    PACKAGING

    • Carton box

    WEIGHT - SIZE

    • Weight: 5.89 Kg (13 lbs)
    • Base dimensions:  295 x 278mm 11.61 x 10.94 in
    • Height:  (h) 230 mm 9.05 in
    • Distance between two fixtures: 1000 mm (Suggested) - 39.37 in
    • Distance by wall: 1000 mm (Suggested) 39.37 in

    ACCESSORIES

    • Omega Bracket: 2 x 183102-805 (Included)
    • ETL Power:  CAB02B-802 (Included) Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
    • Barn door: AA2048000102 (Included)
    • Frost Holder: AA2049000102 (Optional)
    • Safety Chain: 105041-00 (Optional)
    • Clamp: C21070 (Optional)
    • Flight case: CF1041F (wih 6 foam Included)
    • Foam Shell: F21343-001
