Panify 2

CA3050

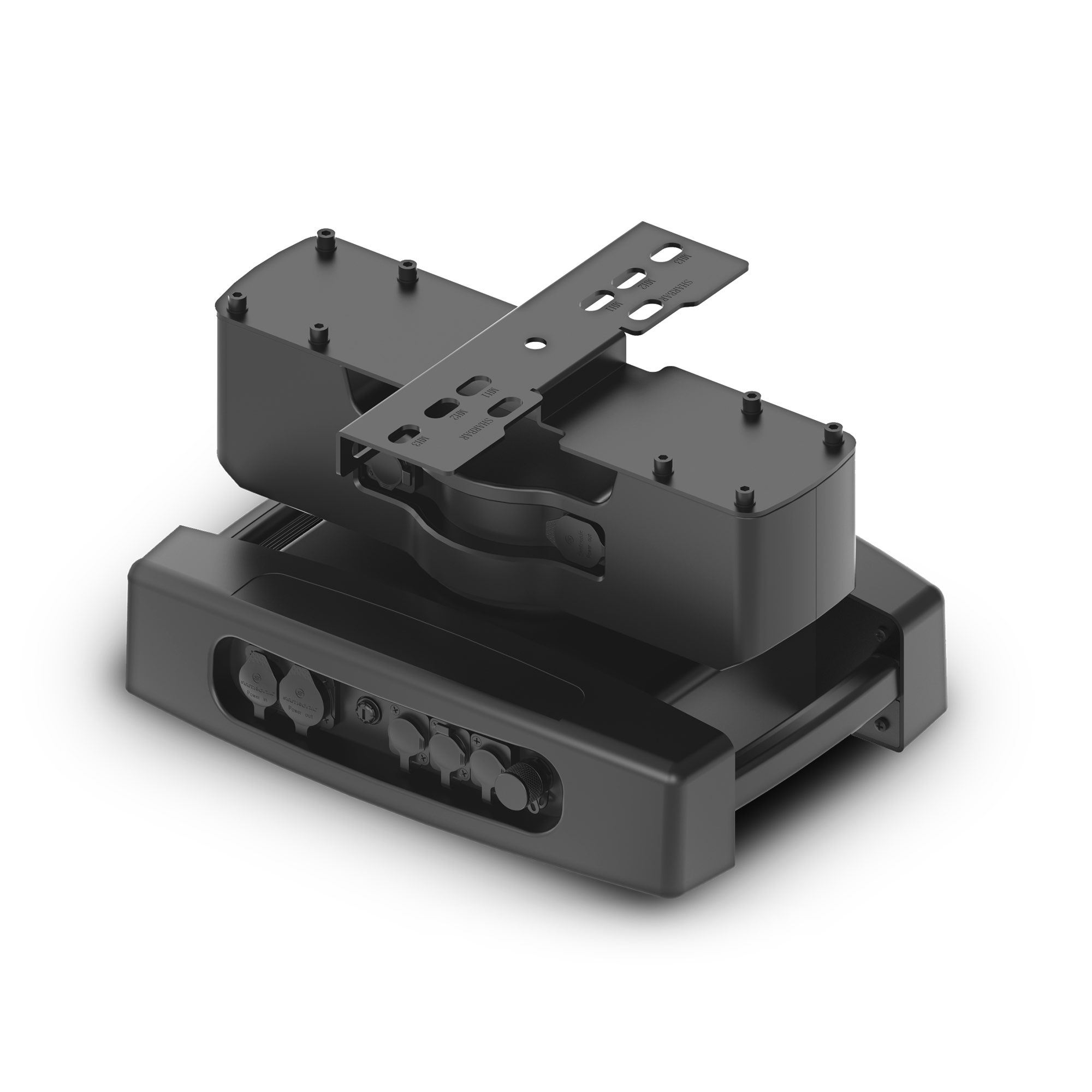

Claypaky Panify 2
NEW

Claypaky’s commitment to innovation shines bright with the introduction of Panify 2. This groundbreaking motorized platform empowers you to animate any static fixture, bringing it to life with dynamic effects and creating immersive experiences.

Key benefits of Panify 2

Unparalleled Flexibility and Versatility
Its endless pan operation and various speeds, coupled with a maximum payload of 30kg, allow for unparalleled effects, making it suitable for many applications, including concerts, theatrical productions, corporate events, and more.

Inclusive IP66 Solution
Panify 2’s IP66 rating enables indoor and outdoor use, further expanding its potential use cases. One of Panify 2’s remarkable features is its compatibility with many fixtures, not just Claypaky products. Beyond fixtures, Panify 2 offers limitless possibilities for enhancing scenery, signs, screens, and more.

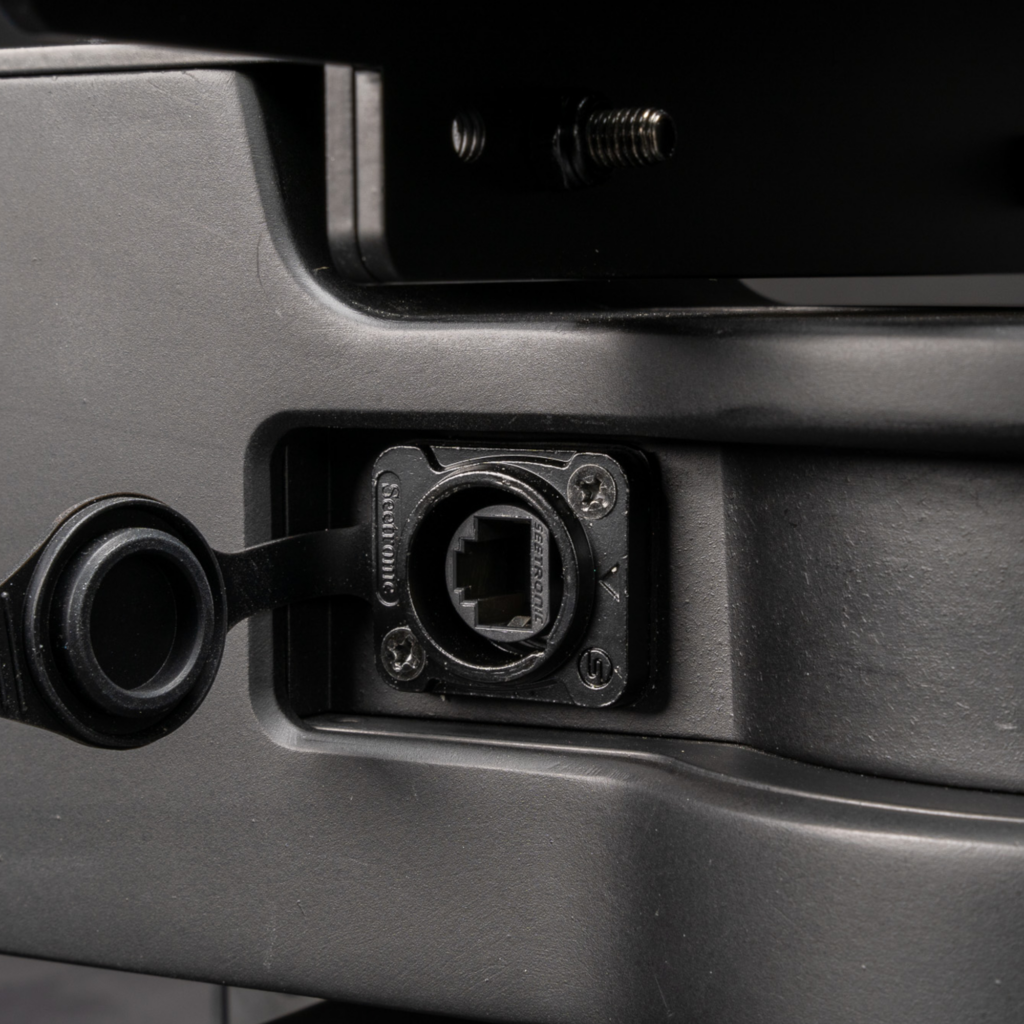

Ethernet Connection
Panify 2 is designed with two power inputs – one for the unit and another for the mounted fixture. Its intelligent crossbeam design ensures tidy cable management, allowing you to focus on creating without the hassle of tangled wires. Panify 2 is an energy-efficient solution that doesn’t compromise performance. It’s also wireless DMX-ready, simplifying setup and operation for a seamless user experience. Panify 2 offers an ArtNet connection to the mounted fixture or LED panel, providing more interactivity with the media servers and pixel mapping.

Panify 2 is not just a motorized platform; it’s an activator for innovation and transformation in your productions. Its adaptability and reliability make it the ultimate solution for expressing your creative vision with confidence and precision. Get ready to redefine what’s possible with Panify 2 by your side!

  • Effects
    Advanced tool turning fixtures, scenery, signs, screens into dynamic effects; Endless PAN rotation at various speed (up to 50 RPM); Maximum load to be applied: 30kg (66 lbs); Any hanging positions; DMX and WDMX (optional) controllable; ArtNet connection
Data Sheet DMX Channels

Highlights

Specs

Save as pdf and print



CONTROL and CONNECTIONS

  • Personalities:
    • Single mode with 5 control channels
  • Protocol:
    • DMX, Art-Net, RDM, sACN
    • DMX (Base to Head)
  • Connectors:
    • Locking 5 pin XLR IN/OUT (Base)
    • Locking 5 pin XLR OUT (Head)
    • RJ45 IN/OUT (Base)
    • RJ45 OUT (Head
  • Power con:
    • PowerCon True1 IN/OUT (Base)
    • PowerCon True1 OUT (Head)
  • Web Server:
    • Built-in
  • CloudIO:
    • Fully compatible

DYNAMIC EFFECTS

  • Rotating Effects:
    • Pan endless
    • MAX rotating speed: 43 rpm
  • Max applicable weight:
    • 30Kg with the weight of the fixture balanced on the Panify

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP66 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 220W
  • Mins Out: 2300 VA @230V; 1250VA @ 110V

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)

SAFETY SPECS

  • Forced ventilation with axial fans
  • Fuse T10A – 250V

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35/EU – Low Voltage Directive (LVD)
    • 2014/30/EU – Electromagnetic compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N.1101
    • S.I. 2016 N.1091
    • S.I. 2012 N.3032
  • cMETus Listed
    • UL 962
    • CSA C22.2 N.68-18

PACKAGING

  • Carton box + Polystyrene
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • 13,8 Kg (30,4 lbs)
  • Base:  390,8 x 295 mm (15,39 x 11,61 In)
  • Height: 252,8 mm  (9,95 In)
  • Distance between two fixtures: It varies depending on the fixture mounted on the product

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • ETL Power cord 1.5mt. (bare end with IP65 PowerConTrue1 connector): CAB02B-802 (included)
  • Power cable : 0,5 mt CAB0PR/801 (Included)
  • DMX cable:0,5 mt 2x CAB0PS/801 (Included)
  • Safety Chain: 0,5 mt 2x FUN00C/001 (Included)
  • Screws / Bolts / Washers:4x418100-801 (Included)
  • Flight case (4 pos):CF1016F(Optional)
  • Foam Shell: CA3006C4112OF(Optional)
  • Safety Chain: 105041-003 (Optional)
  • Clamp:C21070 (Optional)
  • PowerCon True 1 con.:CON00O (Optional)
  • Universal bracket: CA3017000102 (Optional)

test



Technical Documentation

E-ASSIST

For all other detailed documentation login E-Assist

You can find manuals, datasheets, DMX channel charts, photometrics, CAD symbols, spare parts, firmware files, schematics, technical notes, etc... in the new dedicated Claypaky Customer Care website (restricted access)

Sign In

Catalogues and Brochures

Claypaky Panify 2

Panify 2 leaflet

Download PDF
