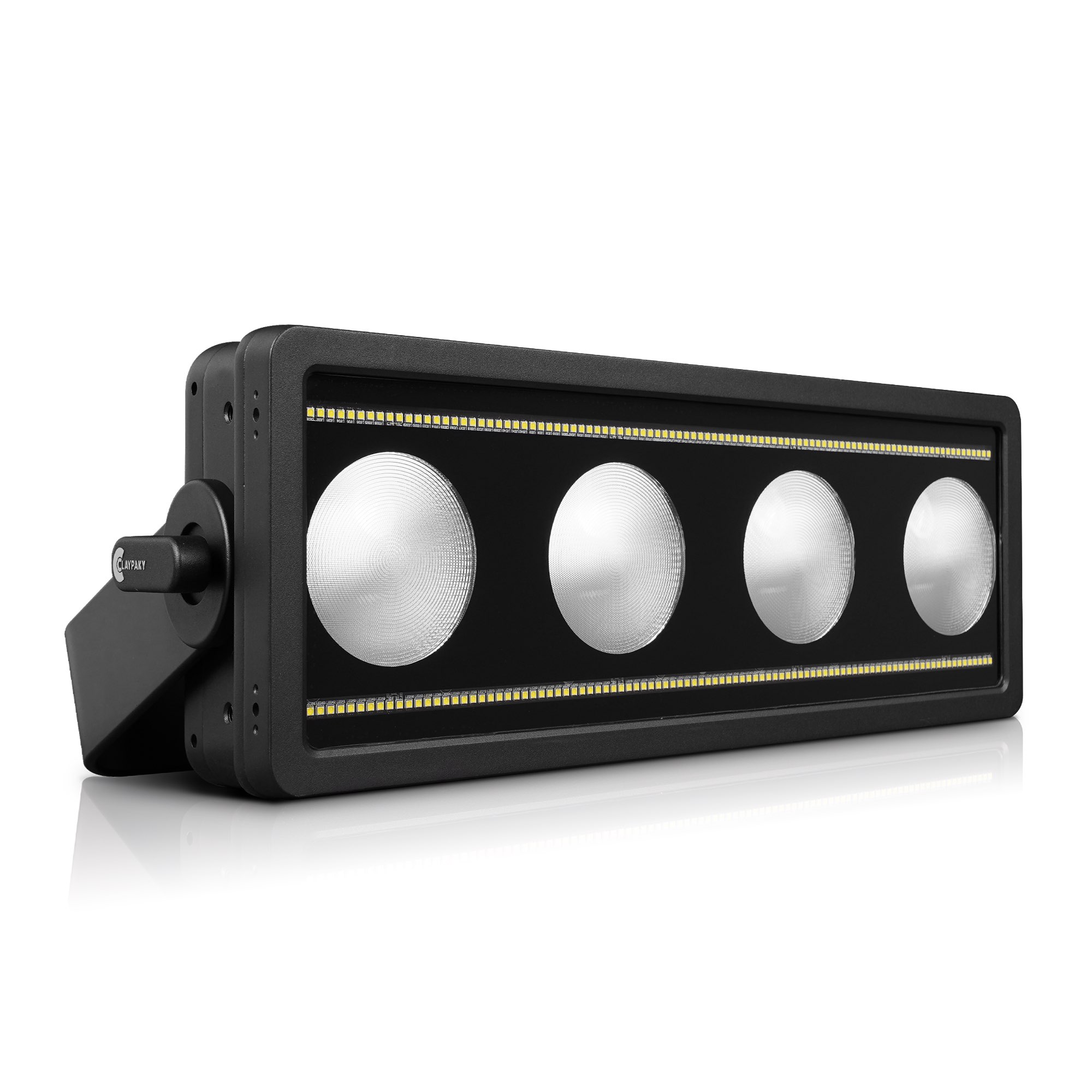

Claypaky Tambora Flash

Tambora Flash is a hybrid fixture that can act simultaneously as a strobe, wash, and blinder, specifically designed with a modular approach for use in line array, to offer new creative opportunities to lighting designers.

Following its successful range of LED bars, Claypaky has expanded the Tambora family further and introduced the Tambora Flash.

The strobe section is based on two strips of very powerful white LEDs and a large beam angle aperture, capable of bringing a real impactful light into the show.

The blinder and the wash functions are obtained thanks to 4 large central RGBWW LED reflectors of 100W each, individually controllable in each function through the Advanced Layer Management. The Warm White LEDs allow the “warm” effect typical of blinders. However, the blinder effect can also be obtained using colored LEDs, for a more dramatic impact than usual.

Both strobe and blinder effects are so visually striking that they can be perfectly appreciated in concerts and live events in broad daylight, even in bright sunlight!

Tambora Flash was conceived and developed for combining several product units horizontally and vertically, to obtain clusters that are conceptually like the line arrays of audio systems. Its core unit is suitable for smaller venues and this is contained in a modular design that can be quickly connected to create larger units for use in big venues and stadiums.

Claypaky Tambora Flashes offers two quick coupling modes and the adjustment of each single fixture within the cluster on a 30° angle, to adapt to every application.

The advanced mechanics and the ease of combining matrix products make Tambora Flash a versatile and fun-to-use system.

Tambora Flash offers an IP66 degree of protection, guaranteeing ideal use outdoors.

  • Light Source
    4x 100W RBGWW LEDs and 2 lines of cold white strobe LEDs splitted into 16 areas (120° beam angles) 6000°K CCT
  • Light Output
    8,458 lm (Integrating Sphere) @ full color
  • Zoom range
    31° reflector
  • Effects
    Advanced Layer Management; Electronic linear dimmer; Electronic strobe @25 f/sec; Pixel mapping and strobe split into 8 different areas per line (16 in total); Individual LED control of four central RGBWW LED with reflector; Pre-programmed shape selection of static and dynamic patterns, adjustable in color, speed, direction, fade, strobe.
Data Sheet DMX Channels Photometrics PDF

Highlights

Specs

Save as pdf and print

LIGHT SOURCE

  • Source type :
    • LED RGBWW with 31° reflectors
    • 2 lines cold white strobe LEDs split into 16 areas (120° beam angles)
  • Power: 100W
  • Color temperature:: 6000 K CCT (cold white strobe LEDs lines)
  • CRI: Up to 70
  •  LED life expectancy: 50000Hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom:
    • 31°: Beam Mode
    • 45°: Field Mode
  • Lm output: 8458 Lm (integrating sphere)
  • Front lens: Ø 85 mm (x4)
  • Optical syt.: High efficiency

NOISE LEVEL

  • Controlled by: Able to control linearly the speed of the fans
  • Fixed presets:
    • Silent mode: 36,7 dBA
    • Theatre mode: 36,7 dBA
    • Constant mode: 49,2 dBA
    • Auto mode: 49,3 dBA

CONTROL and CONNECTIONS

  • Personalities:
    • Main engine: 5 modes with 16 / 20 / 34 / 42 / 36 control ch.
    • Pixels engine: 2 modes with 12 / 16 control ch.
    • Strobe engine: 1 mode with 16 control ch.
  • Protocol: DMX, Art-Net, RDM, sACN
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • RJ45 IN/OUT
  • Power con.: PowerCon True1 IN/OUT
  • Web server: Built-in
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colors:
    • Advanced layers management (color, internal shape, pixel mapping + strobe)
    • Pixel mapping and strobe split into 8 different areas per line (Tot. 16)
    • Individual LED control of four central RGBWW LEDs with reflectors
    • Pre-programmed shape selection of static and dynamic patterns, adjustable in color, speed, direction, fade and strobe
    • Red shift
  • Dimmer / Shutter:
    • High resolution electronic dimmer - 24 bit, 5 curves
    • Electronic strobe 25f/sec
    • Strobe shape, speed, fade duration ranging from 1Hz to 25Hz

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • IP66 protection rate
  • Working in any position
  • Advanced mechanics for horizontal and vertical combination
  • Hanging system: with fast-lock Omega clamps (1/4) turn on the base
  • Adjustable angle from 0° to 20°
  • Optional safety chain

WORKING POSITION

  • Aluminium and steel structure with plastic covers
  • IP66 protection rate
  • Advanced mechanics for horizontal and vertical combination
  • Hanging system: with fast-lock Omega clamps (1/4) turn on the base
  • Adjustable angle from 0° to 20°
  • Optional safety chain

ELECTRICAL

  • Operating Voltage:  100-240V, 50/60 Hz - In/Out Max 1(0) fixtures @ 200-240Vac (@ 100-120Vac)
  • In/Out MAX: 1(0) fixtures @200-240Vac (@100-120Vac)
  • Power Supply: Electronic auto range with active PFC
  • MAX power consumption: 1150VA @230Vac 50Hz

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 3928 BTU/hr ±10% / 4140 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 0.5 meters (1’ 8”)
  • Minimum distance from flammable materials. 0.2 meters (8”)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU – Electromagnetic compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N.1091
    • S.I. 2012 N.3032
    • S.I. 2021 N.745
  • cMETus Listed
    • UL 1573:2003
    • CSA C22.2 N.166:2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 position)

WEIGHT - SIZE

  • Weight:
    • 10.4 Kg (22.9 lbs).
  • Dimensions without handles:
    • 497 x 180 x 186 mm
    • 19,56 x 7,08 x 7,32 In
  • Dimensions with handles:
    • 537 x 180 x 244 mm
    • 21,14 x 7,08 x 9,60 In

ACCESSORIES

  • Omega bracket: 183102-805 (Included)
  • ETL Power: CAB02B-802* (Optional)
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
  • Connecting Bracket Kit: 3038000102 (Optional)
  • Aliscaf holder: CA3031000102 (Optional)
  • Ground Supporter Straight: CA3044000102 (Optional)
  • Ground Supporter Inclined: CA3043000102 (Optional)
  • Ground Stander: CA3042000102 (Optional)
  • Foam shell: F21334-001 (Optional)
  • Flight case: (4 position): CF1020F (Optional)
  • Safety Chain: 105041-003 (Optional)
  • Barndoor: CA3064000102 (Optional)
  • Top Hat: CA3065000102 (Optional)
  • Frost filters: (Optional)
    • 10°: CA3054000102
    • 15°: CA3055000102
    • 20°: CA3056000102
    • 30°: CA3057000102
    • 40°: CA3058000102
    • 50°: CA3059000102
    • 80°: CA3060000102
    • Neutral: CA3061000102
    • 60° x 10°: CA3062000102
    • 10° x 60°: CA3063000102
