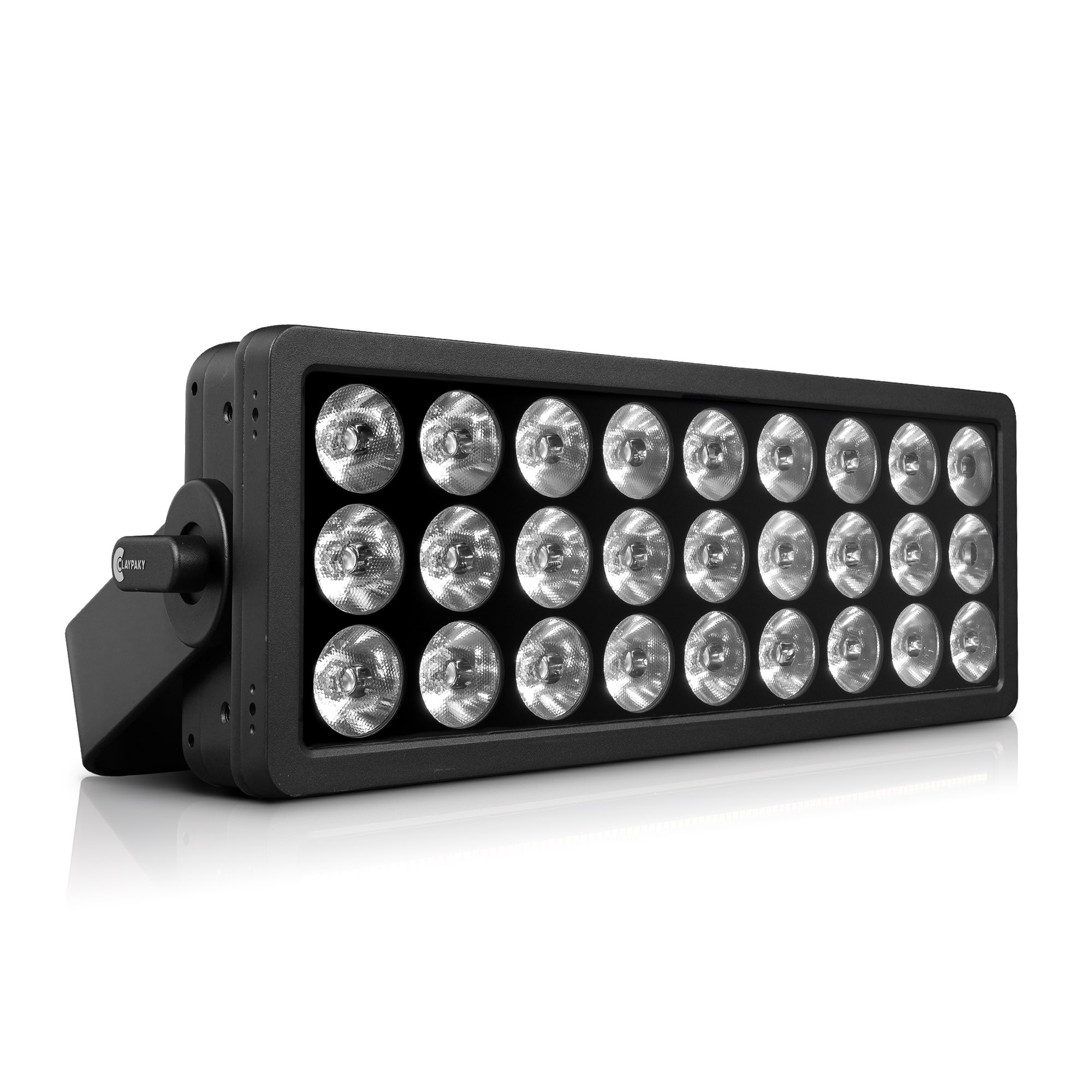

Claypaky Tambora Rays
NEW

Volumetric effects are taken to the extreme!

Tambora Rays redefines what’s possible in lighting design. As the latest addition to the Tambora family, Tambora Rays combines innovation, light output, and creativity. It features 9×3 rows of high-power RGBWW LEDs with pixel-to-pixel control, allowing you to manage 27 individual LEDs for stunning lighting effects.

Versatile and Easy to Use
This compact powerhouse can be used in grids, stage borders, vertical or horizontal arrays, or flying bars. Its design is compatible with Tambora Flash and Stormy, enabling creative combinations for impressive visual effects.

Dynamic Control
With Advanced Layer Management, multiple effects are created simultaneously. Mix and match three effects’ layers, seamlessly switching between background colors, macro sequences, and external video content for dynamic and engaging shows.

Dramatic Visual Impact
Tambora Rays’ high output and long-throw focused narrow beam create dramatic aerial effects, for highlighting key moments. The 7° narrow beam angle can be modified with optional accessories like frost filters and barndoors for precise control.

Superior Performance and Reliability
The state-of-the-art optical design ensures superior performance, precision, and exceptional color quality. Built to last, Tambora Rays is part of the IP66-rated Shield family, making it waterproof, dustproof, and maintenance-free for indoor and outdoor use.

Built to last
Energy-efficient and easy to maintain, Tambora Rays significantly reduces operating costs. Ideal for TV studios, tours, and theatrical environments, its sleek design and advanced pixel mapping capabilities add a distinctive flair to your setups.

Tambora Rays offers exceptional event lighting for both indoor and outdoor applications. Delivering professional performance, outstanding reliability, and great value, it truly shines.

  • Light Source
    27x 40W RBGWW LEDs
  • Light Output
    up to 19,000 lm
  • Zoom range
    7° beam aperture
  • Effects
    Advanced Layer Management; Electronic dimmer; Electronic strobe @30 f/sec; Single Pixel mapping and strobe split into 27 different segments.
Data Sheet Photometrics PDF

Highlights

Specs

LIGHT SOURCE

  • Source type: 27 LEDs RGBW W x 40W
  • CRI: Up to 80
  • LED life expectancy: 50.000 Hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Lumen Output: 23702 Lm (Integrating Sphere)
  • Beam angle:
    • 13,7° : 10%
    • 7,1° : 50%
  • Optical system: HIgh efficiency

NOISE LEVEL

  • Controlled by: Able to control linearly the speed of the fans
  • Fixed presets:
    • Auto: 46.3 dB
    • Silent: 32.5 dB
    • Theatre: 32.2 dB
    • Constant: 51.4 dB

CONTROL and CONNECTIONS

  • Personalities:
    • Main engine: 3 modes with 10 / 32 / 26 control channels
    • Pixels engine : 2 modes with 81 / 108 control channels
  • Protocols: DMX, Art-Net, sACN, RDM, Webserver
  • Connectors: Locking 5 pin XLR IN/OUT, RJ45 IN/OUT
  • Power connector :PowerCon True1 IN/OUT
  • Web Server: Built In
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Advanced layers management (color, internal shape, pixel mapping (3 x 9)
    • Linear CTO 2700K to 8000K
    • Individual control of 27 LEDs
    • Pre-programmed shape selection of static and dynamic patterns,and dynamic patterns, adjustable in color, speed, direction, fade and strobe
  • Strobe:
    • Electronic strobe from 1 to 30f/sec
  • Dimmer/Shutter:
    • High resolution electronic dimmer 16Bit 5 curves

HARDWARE and SOFTWARE

  • Long life self charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • IP66 protection rate
  • Working in any position
  • Advanced mechanics for horizontal and vertical combination
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100–240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 720W

THERMAL SPECIFICATION

  • MAX Ambient temperature: 45°C (113°F)
  • Min Ambient temperature: -20°C (-4°F)
  • MAX temperature of the external surface:  90°C (194°F)
  • Total heat dissipation: 2460 BTU/hr ±10% / 2592 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 0,5 m (1’8’’)
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans
    • External mains fuse T 10A 250V
    • External fuse for battery T3A 250V

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N. 166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell

WEIGHT - SIZE

  • Weight: 10,44 Kg (23,02 lbs)
  • Dimensions  without handle: 497 x 180 x 186 mm (19,56 x 7,08 x 7,32 In)
  • Dimensions with handle: 537 x 180 x 244 mm (21,14 x 7,08 x 9,61 In)

ACCESSORIES

  • Omega bracket: 183102-805 (Included)
  • ETL Power: CAB02B-802* (Optional)
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
  • Connecting Bracket Kit: 3038000102 (Optional)
  • Aliscaf holder: CA3031000102 (Optional)
  • Ground Supporter Straight: CA3044000102 (Optional)
  • Ground Supporter Inclined: CA3043000102 (Optional)
  • Ground Stander: CA3042000102 (Optional)
  • Foam shell: F21334-001 (Optional)
  • Flight case: (4 position): CF1020F (Optional)
  • Safety Chain: 105041-003 (Optional)
  • Barndoor: CA3064000102 (Optional)
  • Top Hat: CA3065000102 (Optional)
  • Frost filters: (Optional)
    • 10°: CA3054000102
    • 15°: CA3055000102
    • 20°: CA3056000102
    • 30°: CA3057000102
    • 40°: CA3058000102
    • 50°: CA3059000102
    • 80°: CA3060000102
    • Neutral: CA3061000102
    • 60° x 10°: CA3062000102
    • 10° x 60°: CA3063000102
