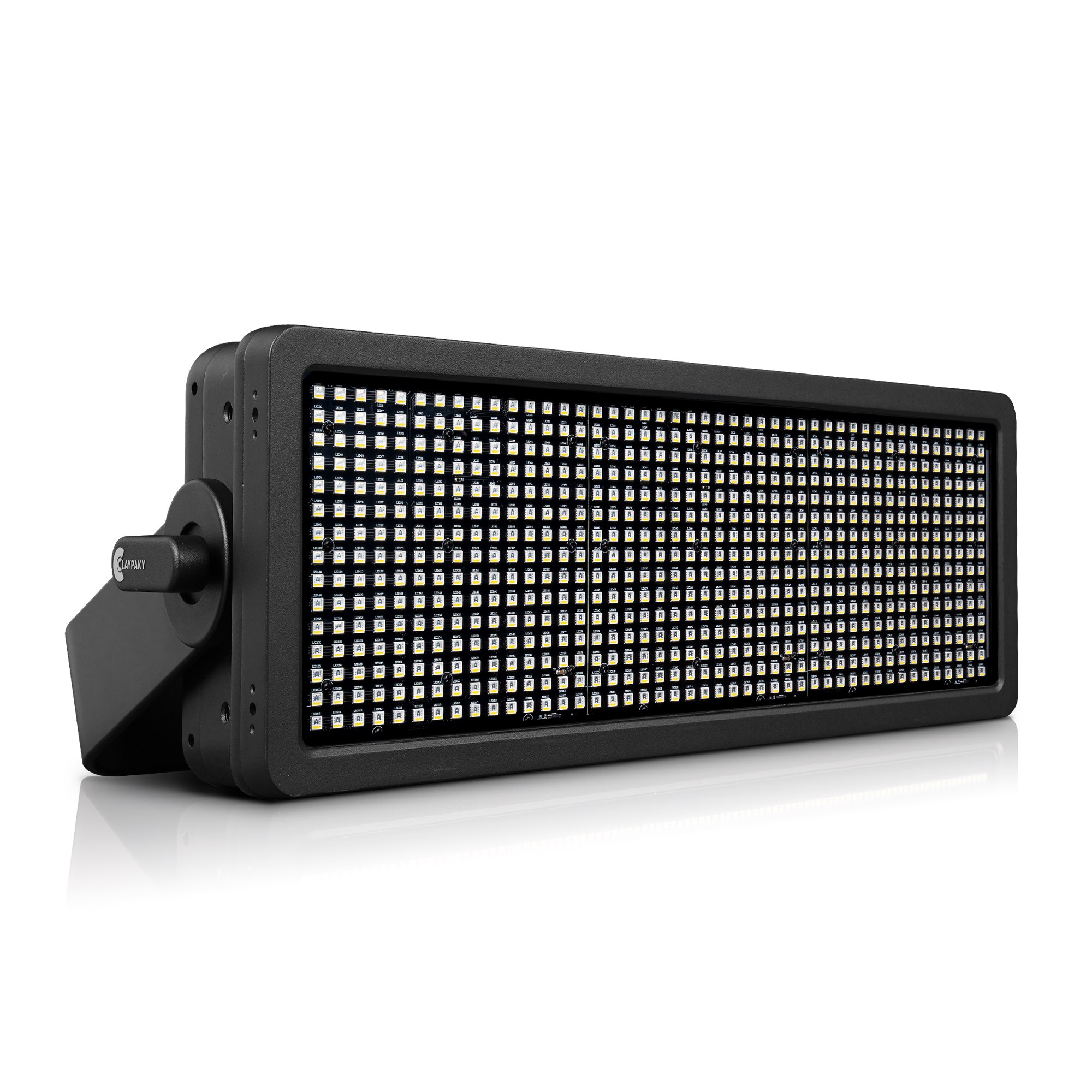

Tambora Stormy

CL2026

NEW

The classic strobe, translated into the 21^st century!

Introducing the Tambora Stormy: the latest addition to the renowned Tambora range, designed to elevate your lighting design and performance.
Experience seamless graphical effects, modular design consistency, and full pixel control—all with a powerful strobe for attention-grabbing visuals. Packed into a compact fixture with 27 segments of RGBW SMD LEDs, you can get wide lighting coverage optimized for close-distance illumination. Unlock endless creative options at your command!

Why you’ll love Tambora Stormy:

Top-Notch Lighting Effects: Packed with high-performance RGBW SMD LEDs it delivers powerful wide-angle projections, fast feedback, and rapid-firing strobe effects. With 27 controllable segments, you can create dynamic color effects and pixel-mapping combos for any scenario.

Innovative Advanced Layer Management: With our innovative system, you can mix three layers at once – a background color, an internal built-in macro sequence, and some external video content. Switch between these layers seamlessly with just a flick of a switch!

Versatile and Precise: It offers dynamic color temperature control with Red Shift tech and a 120° beam angle for remarkable strobe effects on large stages and rich lighting for shorter throws.

Easy-mounting Accessories: Optional tool-free or magnetic accessories like barndoors or filter frames for extended control and customization allow you to adapt the lighting to any specific needs.

Seamless Integration: Tambora Stormy matches the dimensions of Tambora Flash and Rays for a cohesive look. Mix and match them with our accessories for endless creative possibilities in any configuration. Its efficiency, compact size, and easy rigging make setup quick and hassle-free anywhere.

Built to Last: With its all-weather design and high IP66 protection rating, the Tambora Stormy is perfect for outdoor events and installations. Plus, it’s practically maintenance-free, making it a sustainable and long-lasting choice for outdoor and indoor use.

Get ready to wow your audience with the powerful, energy-laden effects of the new Tambora Stormy – The must-have strobe light that will take your lighting designs to the next level!

Light Source

675x 2W RBGW SMD LEDs split into 27 segments
Light Output

up to 34,000 lm
Zoom range

120° beam aperture
Effects

Advanced Layer Management; Electronic dimmer; Electronic strobe @30 f/sec; Pixel mapping split into 27 different segments.

Data Sheet Photometrics PDF

Highlights

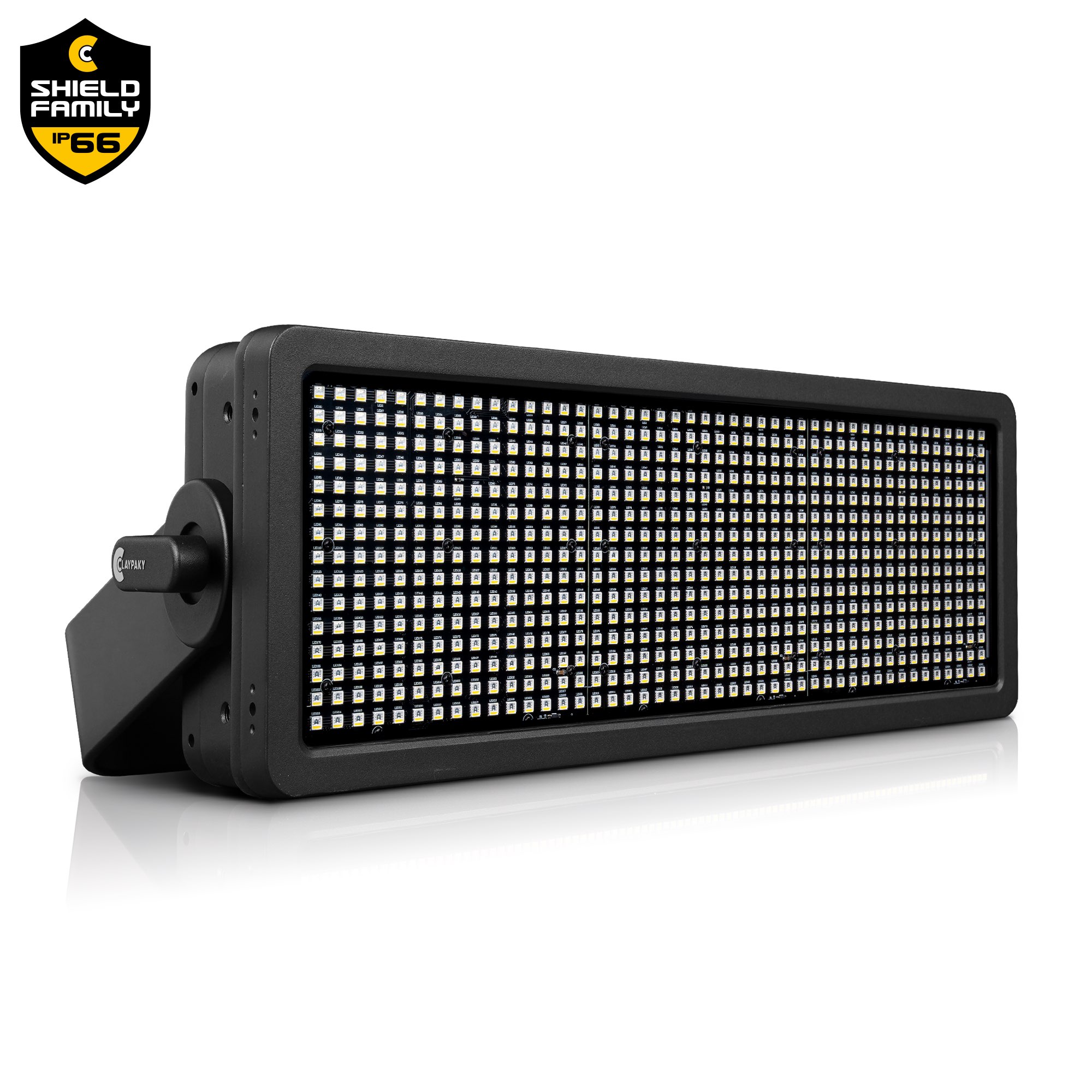

Shield Family (IP66)

Shield Family (IP66)

Claypaky’s Shield Family (IP66) was born to create a new standard of weatherproof luminaires that are high-performance, ultra-durable, and long-lasting. Tambora Stormy is an IP66-rated fixture that offers unique benefits, not only in performance but also in handling and use.

Discover more about Shield Family (IP66)
Advanced Layer Management

Advanced Layer Management

This feature, also available on Tambora Stormy, allows you to use three levels of effects simultaneously. You can simultaneously select a background color, an internal built-in macro sequence, and video content from an external source – switching between all the layers is quick and easy.
Modular approach and family feeling

Modular approach and family feeling

Tambora Stormy has been designed and engineered to combine multiple product units horizontally and vertically to create clusters conceptually similar to the line arrays of audio systems. It shares the same dimensions as Tambora Flash and Tambora Rays while maintaining a cohesive design appearance. When mounted together, they create stunning visual and graphical effects in vertical, horizontal, or column configurations, as well as flying bars.

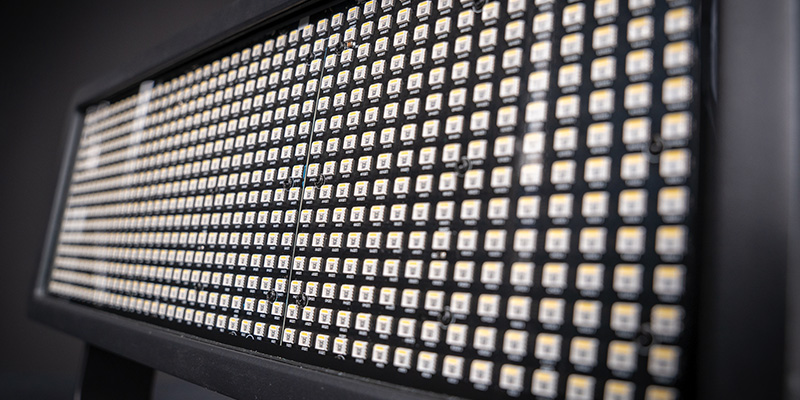

675 RGBW SMD LEDs for powerful strobe effects

675 RGBW SMD LEDs for powerful strobe effects

Tambora Stormy is packed with 675 high-performance RGBW SMD LEDs for powerful, seamless wide-angle projection, fast feedback, and rapid-firing strobe effects. With 27 individually controllable segments, you get dynamic color effects and pixel-mapping combos for creative lighting designs. Each segment offers fast feedback, individual color control, and smooth dimming so you can tailor your lighting to any scenario.

Specs

LIGHT SOURCE

Source type: LED RGBW (675 pcs x 2W)
CRI: Up to 80
Lamp life expectancy: 50.000 Hrs L70*
*It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

Lumen Output: 41367 Lm (Integrating Sphere)
Beam angle:
- 108,9° : 10%
- 65° : 50%

NOISE LEVEL

Controlled by: Able to control linearly the speed of the fans
Fixed presets:
- Auto: 52.3 dB
- Silent: 34.6 dB
- Theatre: 34.9 dB
- Constant: 52.3 dB

CONTROL and CONNECTIONS

Personalities:
- Main engine: 3 modes with 10 / 32 / 26 control channels
- Pixels engine : 2 modes with 81 / 108 control channels
Protocols: DMX, Art-Net, sACN, RDM, Webserver
Connectors: Locking 5 pin XLR IN/OUT, RJ45 IN/OUT
Power connector: PowerCon True1 IN/OUT
Web Server: Built In
CloudIO: Fully compatible

DYNAMIC EFFECTS

Colours:
- Advanced layers management (color, internal shape, pixel mapping (3 x 9)
- Linear CTO 2700K to 8000K
- Individual control of 27 LEDs
- Pre-programmed shape selection of static and dynamic patterns,and dynamic patterns, adjustable in color, speed, direction, fade and strobe
Strobe:
- Electronic strobe from 1 to 30f/sec
Dimmer/Shutter:
- High resolution electronic dimmer 16Bit, 5 curves

HARDWARE and SOFTWARE

Long life self charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM

HOUSING

Magnesium housing
IP66 protection rate
Working in any position
Advanced mechanics for horizontal and vertical combination
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

ELECTRICAL

Operating Voltage: 100–240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
Max Power consumption: 720W

THERMAL SPECIFICATION

MAX Ambient temperature: 45°C (113°F)
Min Ambient temperature: -20°C (-4°F)
MAX temperature of the external surface: 90°C (194°F)
Total heat dissipation: 2460 BTU/hr ±10% / 2592 kJ/hr ±10%

SAFETY SPECS

Minimum distance of illuminated objects: 0,5 m (1’8’’)
Minimum distance from flammable materials: 0.2 meters (8”)
Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- External mains fuse T 15A 250V
- External fuse for battery T3A 250V

COMPLIANCE

CE Marking (in conformity to the following):
- 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU Electromagnetic compatibility of equipment (EMC)
- 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
UKCA: conforms to UK Regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N. 3032
- S.I. 2021 N. 745
cMETus Listed:
- UL 1573: 2003
- CSA C22.2 N. 166: 2015

PACKAGING

Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell

WEIGHT - SIZE

Weight: 10,334 Kg (22,78 lbs)
Dimensions without handle: 497 x 180 x 186 mm (19,56 x 7,08 x 7,32 In)
Dimensions with handle: 537 x 180 x 244 mm (21,14 x 7,08 x 9,61 In

ACCESSORIES

Omega bracket: 183102-805 (Included)
ETL Power: CAB02B-802* (Optional)
* Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
Connecting Bracket Kit: 3038000102 (Optional)
Aliscaf holder: CA3031000102 (Optional)
Ground Supporter Straight: CA3044000102 (Optional)
Ground Supporter Inclined: CA3043000102 (Optional)
Ground Stander: CA3042000102 (Optional)
Foam shell: F21334-001 (Optional)
Flight case: (4 position): CF1020F (Optional)
Safety Chain: 105041-003 (Optional)
Barndoor: CA3064000102 (Optional)
Top Hat: CA3065000102 (Optional)
Frost filters: (Optional)
- 10°: CA3054000102
- 15°: CA3055000102
- 20°: CA3056000102
- 30°: CA3057000102
- 40°: CA3058000102
- 50°: CA3059000102
- 80°: CA3060000102
- Neutral: CA3061000102
- 60° x 10°: CA3062000102
- 10° x 60°: CA3063000102
