Arolla Aqua LT

Arolla Aqua LT: CL3037 / Arolla Aqua LT FS: CL3041
NEW

After the worldwide success of Arolla Aqua, we are proud to present Arolla Aqua LT, the family’s second ultra-equipped luminaire specially designed for larger spaces. Imagine a 900W white LED moving head that delivers exceptional brightness, great color accuracy, precise narrow long-throw beam, and advanced creative control – all in one rugged, IP66 weatherproof design. Designed for intensive outdoor use in long-distance applications requiring high precision, Arolla Aqua LT is the ultimate solution for lighting professionals who demand versatility, reliability, and creativity.
Built to cut through the haze and illuminate the night sky, Arolla Aqua LT guarantees impactful aerial effects and long-throw projections to captivate your audience.

Here’s what makes Arolla Aqua LT a must-have:

  • IP66 rating – Shield Family: built to last, its weatherproof design reduces maintenance while guaranteeing long-term reliability. Perfect for indoor and outdoor settings, Arolla Aqua LT performs flawlessly, no matter the conditions.
  • Compact Design: Arolla Aqua LT offers lighting designers a powerful yet lightweight solution, providing precise control and endless creative possibilities.
  • Performance-to-cost Ratio: Its exceptional cost-to-performance ratio sets a new standard for efficiency, allowing designers to achieve their artistic vision without compromising quality.
  • A Toolbox for your Creativity: Arolla Aqua LT features a versatile effects section with two gobo wheels, a four-sided prism, and a 16-blade motorized iris for stunning creative possibilities. It also includes a soft-edge frost filter, a flood frost effect, and a precise digital dimmer, giving you full control to craft the perfect mood.
  • Flawless Precision, Stunning Impact: Arolla Aqua LT delivers sharp beams, crisp projections, and a versatile zoom range, transitioning effortlessly from tight beams (4°) to wide washes (52°). Perfect for dramatic effects or long throws, it cuts through haze to captivate any audience.

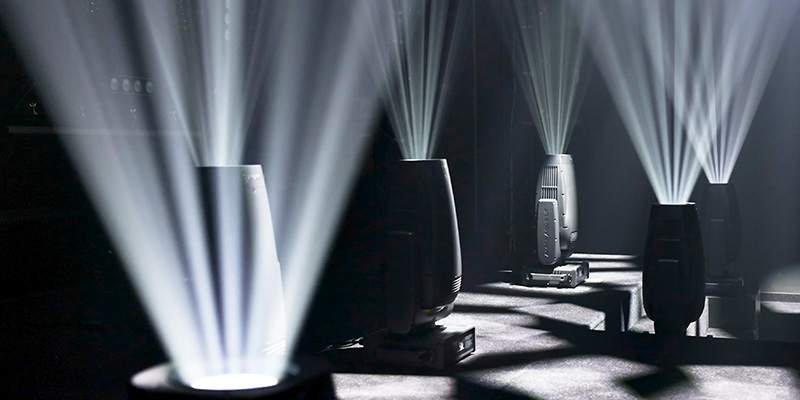

  • Absolute Position Innovation: This special system remembers the fixture’s position in real-time, even after power interruptions, ensuring precise repositioning and reducing setup time.
  • Sun Safe Protection System: Protect your Arolla Aqua LT from sunlight damage with this innovative feature that automatically positions the fixture away from direct sunlight, even without a signal, preventing heat buildup that could harm internal components. Simple, effective, and designed to keep your gear performing flawlessly.
  • Electronic Brake: No more unwanted tilts! This system keeps the head locked securely in place, ensuring smooth, precise positioning—even in the most demanding setups.

Arolla Aqua LT FS (code CL3041) is an external digital camera version, ready for follow spot applications allowing operators to control the fixture remotely while viewing a live feed from the onboard camera (digital camera is not included).

When reliability, innovation, and power gather, you get a moving head that turns lighting into unforgettable experiences. Elevate your designs with Arolla Aqua LT – the ideal blend of long-throw power and pinpoint precision.

  • Light Source
    custom 900W white LED engine (7000 K)
  • Light Output
    44,000 lm (in integrating sphere)
  • Zoom range
    4°-52° linear zoom
  • Effects
    Linear CMY color mixing; Linear CTO; Fixed color wheel with 6 dichroic colors (including high CRI 88+ filter); 1 static gobo wheel with 8 replaceable gobos; 1 rotating gobo wheel with 7 HD indexable and replaceable gobos; Animation disc with continuous rotation in both direction at variable speed; Four-sided rotating prism; Motorized iris with variable pulse and random effects; Framing system: four focal planes, +/- 60° rotation of the full system; “Total Curtain” effect allowing full blackout with each single blade; Built-in macros; Linear heavy frost 5° for wash effect, and light frost 1° for soft diffusion
Press Kit Data Sheet DMX Channels Photometrics PDF

Highlights

Specs

Save as pdf and print

LIGHT SOURCE

  • Source type: White LED
  • Power: 900W
  • Colour Temperature: 6500K
  • CRI: Up to 70
  • LED life expectancy: 40.000 Hrs L70*
    *It may vary depending on various factors, such as the type of use and environment

PHOTOMETRIC DATA

  • Aperture: 4° to 52°
  • Lumen Output: 44.000 lm (integrating sphere)
  • Front lens: Ø 157 mm
  • Optical system: High efficiency

NOISE LEVEL

  • Fixed preset:
    • silent mode:: 37.5 dB
    • auto mode: 46.3 dB
    • theatre mode: 37.4 dB
    • constant mode: 47.1 dB

CONTROL and CONNECTIONS

  • Personalities: 2 modes with 38 / 41 control channels
  • Protocols: DMX, Art-Net, sACN, CRMX (Lumen Radio)
  • Connectors: Locking five-pin XLR IN/OUT, RJ45 IN/OUT
  • In addition with FS version: USB 12V + RJ45 for camera version
  • Power connector: PowerCon True1 IN/OUT
  • Web Server: Built-In
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • linear CMY colour mixing
    • linear CTO filter from 3400K to 6300K
    • Color wheel with 6 dichroic colors
  • Gobos:
    • 1 rotating gobo wheel with 7 interchangeable glass gobos
    • 1 static gobo wheel with 8 gobos
  • Framing system:
    • 4 blades with ± 60° rotation of the full system
    • “Total Curtain" effect allowing full blackout with each single blade
  • Frost:
    • 2 linear heavy frosts 5° and 1°
  • Rotating effects:
    • 1 aluminum animation wheel with continuous rotation in both direction at variable speed
    • 1 four-facet prism with rotation in both directions at variable speed
  • Iris:
    • motorized with variable pulse and random effects
  • Movement:
    • tilt: 270° - 16bit
    • pan: 540° - 16bit
    • absolute positioning, Mechanical pan/tilt lock for safe transportation and maintenance
  • Dimmer/Shutter:
    • high resolution dimmer; shutter and strobe effect

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display graphic LCD blacklit B/W display;
  • Firmware upload from another fixture,
  • Firmware upgrade via Web Server;
  • Diagnostic;
  • DMX monitoring;
  • Remote access through RDM

HOUSING

  • Aluminium and steel structure with plastic covers
  • Two-side handles for transportation
  • IP66 protection rate
  • Working in any position
  • Hanging system with fast-lock Omega clamps (1/4) on the base
  • Optional safety chain
  • Special feature: sun safe protection

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 1400W

THERMAL SPECIFICATION

  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 3074 BTU/hr ±10% / 3240 kJ/hr ±10%

SAFETY SPECIFICATIONS

  • Minimum distance of illuminated objects:  0.2 m (8 In)
  • Minimum distance from flammable materials: 0.2 m (8 In)
  • Protections:
    • External Mains Fuse T 16A 250V - 5x20mm
    • External Fuse (to disconnect battery during flights transportation) T 6,3A 250V - 5x20mm
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

COMPLIANCE:

  • CE Marking (in conformity to the following):
    • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N. 166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (1 position)

ACCESSORIES

  • Omega braket: 183102/805 (included)
  • ETL Power cord: CAB02B/802 (included)*
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Foam shell: F21322/001 (optional)
  • Flight case 2 position: CF1044F (optional)
  • Safety Chain: 105041/003 (optional)
  • Clamp: C21070 (Optional)
