Tambora Stormy Linear

CL2024
Claypaky Tambora Stormy Linear
NEW

The hybrid bar that takes graphical strobe to new heights.

Tambora Stormy Linear redefines professional strobe lighting with extreme brightness, pixel-perfect control, and seamless modularity. This innovative hybrid bar delivers stunning graphical strobes that transform any production into an immersive visual experience.

Tambora Stormy’s main features at a glance:

  • Dual-Engine Hybrid Performance: Unlock versatility with 25 central RGBW LEDs for vibrant color and two ultra-powerful strobe lines with 125 WW/CW LEDs, each divided into 25 controllable segments. Create simultaneous color effects and strobe sequences effortlessly.
  • Precision Pixel Control: Gain full control over each of the 25 segments, adjusting color, intensity, and timing for motion graphics and dynamic effects.
  • Advanced Layer Management System: Blend three effect layers in one fixture—background color, built-in macros, and custom video content. Achieve professional looks with ease and make live adjustments during performances.

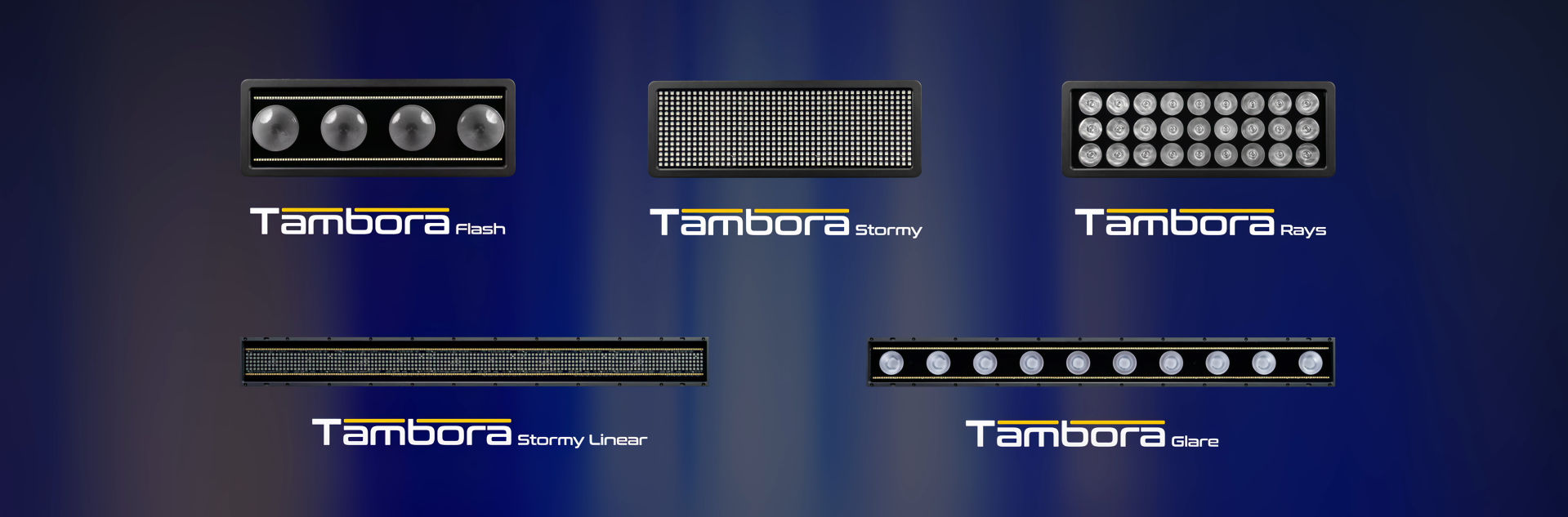

  • Modularity Anywhere, Anytime: Tambora Stormy Linear shares accessories and design elements with Tambora Glare, offering seamless integration in both horizontal and vertical setups. Build cohesive lighting arrays or distribute fixtures across venues.
  • All-Weather, IP66 Rated: Perfect for outdoor events, this fixture withstands challenging weather conditions. Its compact design (14kg) simplifies transport, while magnetic filters allow quick adjustments for frost or enhanced pixel definition.
  • Broadcast-Ready: With neutral density filters optimized for broadcast, Tambora Stormy Linear ensures crisp, high-visibility lighting that excels both live and on screen. Its 120° aperture provides generous coverage without sacrificing intensity.

Ready to revolutionize your lighting design? Contact us today for more info about Tambora Stormy Linear. Don’t miss this game-changer!

  • Light Source
    Main Engine: 5x5 SMD RGB LEDs x25 Strobe Engine: 2 (lines) x 125CW+125WW x1W LEDs, for each line
  • Zoom range
    120° beam (RGB LEDs) 120° beam (WW/CW LEDs)
  • Effects
    Advanced Layer Management System; Pixel Mapping
Press Kit
Get In Touch

Highlights

  • Claypaky Shield Family (IP66)
    Shield Family (IP66)
    Shield Family (IP66)

    Claypaky’s Shield Family (IP66) sets a new standard for weatherproof luminaires, combining high performance, durability, and longevity. Tambora Stormy Linear, an IP66-rated fixture, delivers exceptional performance while offering ease of handling and versatility.




    Discover more about Shield Family (IP66)

  • Tambora Stormy Linear Advanced Layer Management
    Advanced Layer Management
    Advanced Layer Management

    Tambora Stormy Linear’s Advanced Layer Management System blends three effect layers, for the RGB and the WW/CW LEDs: background color, built-in macros, and custom video content. This seamless approach enables easy creation and quick adjustments, offering the ideal balance of creativity and efficiency.

  • Tambora Stormy Linear modularity
    Modular approach and family feeling
    Modular approach and family feeling

    Tambora Stormy Linear shares mounting accessories, dimensions, and design with Tambora Glare, forming a seamless lighting ecosystem. Its built-in locking system allows easy horizontal arrays, while optional accessories enable vertical configurations—no special hardware needed. Create walls of light, wrap structures in continuous lines, or distribute fixtures for consistent visual identity throughout any venue.

  • Tambora Stormy Linear Broadcast-Ready
    Broadcast-Ready
    Broadcast-Ready

    Tambora Stormy Linear’s neutral density filters improve pixel clarity for broadcast, ensuring perfect on-screen translation. Its 120° aperture and RGB + White LEDs provide wide coverage and high intensity while maintaining crisp, clear visibility even at great distances. Experience both impactful in-person lighting and top-notch broadcast quality with no compromise.

  • Tambora Stormy Linear dual engine
    Dual-Engine Performance
    Dual-Engine Performance

    Tambora Stormy Linear combines 625 RGB SMD LED areas and two ultra-powerful strobe lines with 125 WW/CW LEDs, each with 25 controllable segments. This hybrid design lets you seamlessly blend color and strobe effects, offering endless creative possibilities. Take control over color, intensity, and timing, turning simple flashes into sophisticated motion graphics that perfectly match your cues.

Specs

LIGHT SOURCE

  • Source type:
    • 5x5 SMD RGB LEDs x25 (Main Engine)
    • 2 (Lines) x 125CW+125WW x1W LEDs, for each line (Strobe engine)
  • LED life expectancy:
    • 50.000 Hrs L70*
      *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Aperture:
    • RGB LEDs: 120°
    • CW and WW LED strobe: 120°
  • Lumen output:
    • 31.256 Lm (integrating sphere)
  • Optical system:
    • High efficiency

NOISE LEVEL

  • Fixed presets:
    • Silent mode: 26.2 dBAuto: 40.0 dBA
    • Theatre mode: 26.2 dB
    • Constant mode: 45.3 dB
    • Auto mode: 43.9 dB

CONTROL and CONNECTIONS

  • Personalities:
    • Main engine: 15 / 35 / 48 control channels
    • Pixel engine: 75 channels
    • Strobe engine: 50 / 50 / 50 / 100 control channels
  • Protocols:
    • DMX, Art-Net, RDM, sACN
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • RJ45 IN /OUT
  • Power con:
    • PowerCon True1 IN/OUT
  • Web Server:
    • Built In
  • CloudIO:
    • Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • 625 pcs 3-in-1 RGB LEDs
    • 500 pcs Cold+Warm white LEDs split into 50 areas
    • Advanced layers management (color, internal shape, pixel mapping + strobe)
    • White CT emulation 2800 – 8000 K
    • RGB and strobe shape effect
  • Frost:
    • Neutral Density filter (Optional)
    • White filter 60° (Optional)
  • Dimmer/Shutter:
    • High resolution electronic dimmer, 24 bit, 5 curves
    • Electronic strobe 0,3 to 25 f/sec
    • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • Two side handles for transportation
  • IP66 protection rate
  • Built-in mechanical horizontal alignment system
  • Working in any position
  • Accessories for vertical alignment (optional)
  • Optional safety chain (optional)

ELECTRICAL

  • Operating Voltage:
    • 100 - 240V, 50 / 60 Hz
  • Power Supply:
    • Electronic auto range with active PFC
  • Max Power consumption:
    • 1000W

THERMAL SPECIFICATION

  • Max ambient temperature:
    • 45°C (113°F)
  • Min ambient temperature:
    • -20°C (-4°F)
  • Max temp. of ext. surface:
    • 90°C (194°F)

SAFETY SPECS

  • Min. dist. of illum. objs:
    • 0.5 m (1’8’’)
  • Min. dist. from flamm. mat.:
    • 0,2 m 8 in
  •  Protections:
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU – Electromagnetic compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N.166: 2015

PACKAGING

  • Carton box + polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell

WEIGHT - SIZE

  • Weight:
    • 14 Kg
  • Dimensions:
    • 1000 x 136 x 106 mm

ACCESSORIES

  • Safety Chain: 105041-003 (Optional)
  • Clamp: C21070 (Optional)
